With the widespread adoption of Ethernet connections in industrial control, embedded communications, and edge devices, higher requirements are placed on the selection of physical layer transceiver (PHY) chips: not only is stable and reliable link performance required, but also lower power consumption, higher integration, and anti-interference capabilities in complex electromagnetic environments.

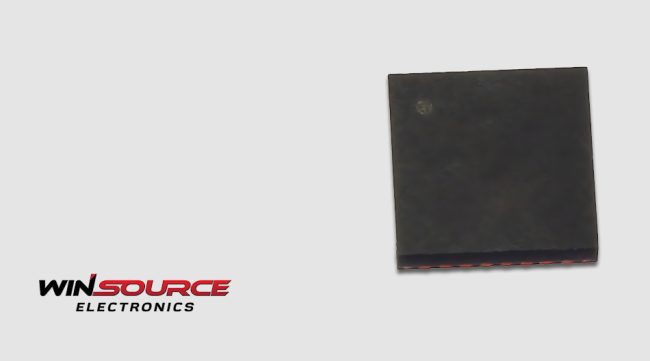

The BCM5241XA1KMLG is a single-port 10BASE-T/100BASE-TX Ethernet PHY transceiver launched by Broadcom. It uses a standard MII interface, complies with the IEEE 802.3u protocol specification, and integrates multiple adaptive functions. It is widely used in routers, industrial main control boards, embedded communication modules, and other devices. It is particularly suitable for efficient deployment in scenarios where cost and reliability are equally important.
High-Reliability PHY Devices that Meet Multiple Design Challenges
1.Simplified Architecture and Lower Design Complexity
The BCM5241XA1KMLG integrates an LDO voltage regulator circuit, a clock recovery module, and a DSP equalizer, supporting operation without an external crystal oscillator. This effectively reduces the number of peripheral components, simplifies hardware design, and lowers BOM costs and PCB space.
2. Excellent Platform Compatibility, Adaptable to Various Control Architectures
The device uses a standard MII interface and can seamlessly connect with mainstream MCUs, FPGAs, and network-specific controllers. It has excellent versatility and facilitates rapid migration and iteration of engineering projects between different platforms.
3. Improve Link Stability and Anti-Interference Capabilities
It has link adaptation features such as auto-negotiation, automatic polarity correction, and Auto-MDIX, and can withstand CESD shocks exceeding 2kV and EMI suppression design, enabling it to maintain stable communication in electromagnetically complex industrial environments.
Technical Specifications Overview
Project Classification | Technical Parameters |
Supported standards | IEEE 802.3u (10BASE-T/100BASE-TX) |
Interface Type | MII (Media Independent Interface) |
Data rate | 10/100 Mbps, auto-negotiation |
Power supply voltage | 2.5 V/3.3 V |
Power consumption indicators | Less than 170 mW, supports energy-saving mode (EEE) |
Package | QFN-32 (5 mm × 5 mm), suitable for high-density patch design |
Operating temperature range | –40°C to +85°C, meeting industrial temperature grade requirements |
Typical Application Directions
The BCM5241XA1KMLG is suitable for a variety of Ethernet communication scenarios, and has significant application advantages in the following types of embedded systems:
- Industrial automation controllers: such as PLCs, remote I/O modules, and industrial Ethernet switch modules, require PHYs to have strong anti-interference capabilities, a wide temperature range, and flexible deployment.
- Embedded main control board: Suitable for MCU or FPGA-based main control systems, providing them with stable 100M Ethernet connection capabilities.
- Communication interface module: can be integrated into 4G/5G DTU, smart meters, and gateway devices to achieve data backhaul or edge protocol conversion.
- Network terminal products: such as network printers, audio and video streaming devices, and building security front-ends, requirePHY to operate stably for a long time with controlled power consumption.
System Design Suggestions
When integrating the BCM5241XA1KMLG into a specific hardware system, it is recommended to pay attention to the following engineering implementation details to obtain optimal performance:
- Differential pair routing specifications: TX/RX differential lines must maintain a 100 Ω characteristic impedance to ensure signal integrity;
- Network isolation device selection: It is recommended to use a 1:1 isolation transformer that complies with IEEE standards and is paired with a common-mode suppression inductor;
- Power integrity design: LDO + π-type filter structure providesa clean and stable power supply and improves anti-interference ability;
- Wiring and ground reference: PHY and MAC chips share the same ground to avoid floating ground interference;
- EMI and ESD protection: Adding TVS tubes and common-mode magnetic beads before the RJ45 interface can effectively suppress surges and electromagnetic interference;
In modern embedded systems, the ability to achieve stable wired network connections has become a fundamental requirement. The BCM5241XA1KMLG, with its high integration, low power consumption, excellent system compatibility, and industrial-grade robustness, provides engineers with a proven and reliable PHY solution.
For datasheets, packaging specifications, or availability details on the BCM5241XA1KMLG, please visit the WIN SOURCE official website for comprehensive technical and sourcing support.
