In modern electronic devices, the performance of high-frequency circuits is crucial. This is especially true for wireless communication, RF (Radio Frequency) technology, and high-frequency power systems. Signal integrity directly affects the efficiency, stability, and reliability of these systems. As the frequency increases and integration levels grow, signal attenuation, distortion, and noise introduction become common challenges.
To address these issues, designers often choose optimized components. Among these, the NDS0605 Schottky Diode stands out due to its excellent performance in high-frequency circuits. This article will explore how this diode improves signal integrity in high-frequency circuits.
1. Characteristics and Advantages of Schottky Diodes
Schottky diodes use a metal-semiconductor contact structure, typically N-type silicon. This structure differs from the traditional PN junction structure. The design provides several distinct advantages, especially in high-frequency applications:
Low Forward Voltage (Vf): Schottky diodes typically have a forward voltage between 0.2V and 0.45V. This is significantly lower than traditional PN-junction diodes, which have a forward voltage around 0.7V. Low forward voltage means less energy loss as current flows through the diode. This helps increase circuit efficiency and reduce power consumption.
Fast Switching Speed: Schottky diodes have a reverse recovery time of just a few nanoseconds. This allows them to switch quickly in high-frequency circuits. The fast switching speed is especially beneficial in high-frequency switching power supplies and RF circuits. It helps avoid signal delays and distortion, improving overall system response times.
Low Reverse Current (IR): Schottky diodes exhibit very low leakage current when reverse-biased. The leakage current is typically in the microampere range. This further reduces energy loss and prevents unnecessary signal noise.
2. Key Features of the NDS0605 Schottky Diode

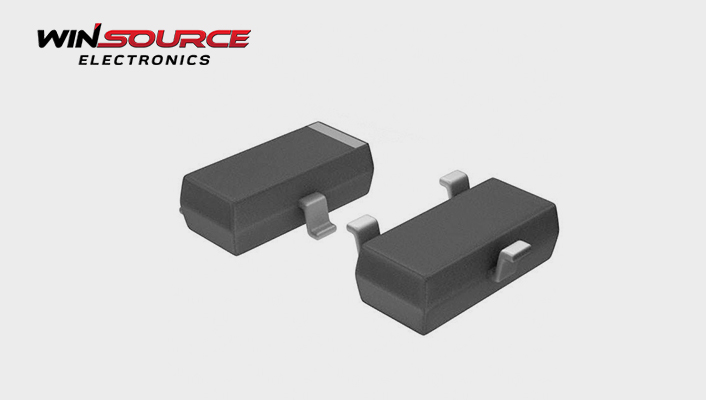

The NDS0605 is an SMD packaged Schottky diode with the following key features:
- Maximum Reverse Voltage: 60V. This makes it suitable for power management and RF applications.
- Maximum Forward Current: 500mA. This current rating is sufficient for many low-power power systems, signal rectification, and protection circuits.
- Maximum Forward Voltage: 0.45V at 500mA. The low forward voltage reduces power loss and improves circuit efficiency.
- Package: SOD-323. This small package is ideal for space-constrained electronic devices, providing good heat dissipation properties.
The NDS0605 diode’s low forward voltage and high efficiency make it particularly suitable for high-frequency circuits. It is especially useful in designs requiring low power consumption, fast response times, and small form factors.
3. Applications of NDS0605 in High-Frequency Circuits
3.1 Optimizing High-Frequency Signal Transmission
In modern RF and wireless communication systems, signal quality directly impacts system transmission efficiency and reliability. The NDS0605 Schottky diode helps improve signal integrity in these systems. Its low forward voltage and low reverse leakage current ensure minimal signal loss. This prevents the power loss typically seen with high forward voltage drops in traditional diodes.
For example, in RF power amplifier (RF PA) circuits, the NDS0605 is often used in rectifier circuits. It effectively converts RF signals into DC power while minimizing signal loss and distortion. Furthermore, the NDS0605’s fast switching characteristics play a crucial role during high-frequency switching. It reduces delays and reverse current effects, ensuring stable signal transmission.
3.2 Power Management and Noise Suppression
Power supply noise is a major factor affecting performance in high-frequency circuits. In wireless communication base stations, automotive electronics, and efficient power conversion systems, power supply noise can cause signal interference and system instability. The NDS0605 helps in power rectification and noise filtering, reducing fluctuations in high-frequency power supplies and improving power system stability.
For example, in DC-DC converters or switching power supplies, the NDS0605 provides fast reverse current protection and stable output current. It minimizes power supply noise and protects sensitive loads and circuits from voltage spikes.
3.3 Reverse Current and Circuit Protection
In RF circuits, reverse current can cause damage to the circuit or signal loss. The NDS0605 diode plays a critical role in quickly switching and blocking reverse current flow. This prevents damage to other components in the circuit. Its use in high-frequency circuits helps protect receivers, transmitters, and other core components from overvoltage and reverse current.
For instance, in mobile devices or battery-powered electronics, the NDS0605 is used in battery management systems. It prevents reverse current flow during battery discharge, ensuring the safety of both the battery and the circuit.
4. Examples of NDS0605 Applications
4.1 Wireless Communication Systems
In modern wireless communication systems such as Wi-Fi, Bluetooth, or mobile communication base stations, the NDS0605 is used for signal transmission, rectification, and power management. The diode offers low-loss signal conversion, ensuring stable communication signals. Moreover, its compact form factor makes it ideal for use in space-constrained devices, meeting both space and efficiency requirements.
4.2 RF Amplifiers
In RF amplifiers, the NDS0605 Schottky diode acts as a rectifier and protection element. It optimizes power output and reduces power loss. By using Schottky diodes in the power supply input of RF amplifiers, power supply noise is effectively reduced. This improves signal quality and ensures stable, clear amplified signals.
4.3 Battery Management Systems
The NDS0605 Schottky diode plays an important role in battery management systems. It ensures the safety of the battery during charge and discharge cycles, preventing reverse current from damaging the battery or causing system failure. Additionally, the low forward voltage feature helps reduce energy loss in the battery, improving battery efficiency.
The NDS0605 Schottky diode, with its low forward voltage, fast recovery time, and low reverse leakage current, plays a crucial role in high-frequency circuits. Whether in wireless communication, RF amplifiers, or power management systems, the NDS0605 significantly enhances system efficiency, reduces power loss, and improves signal integrity.
For electronics designers, selecting the right components is critical. WIN SOURCE, an electronic component distributor, offers a wide range of high-performance components like the NDS0605 Schottky diode. WIN SOURCE helps customers meet their project’s technical requirements and performance standards. Whether for power management, battery protection, or RF and high-frequency circuits, WIN SOURCE provides high-quality products and professional technical support to ensure the stability and longevity of your designs. As electronic technology continues to advance, efficient components like the NDS0605 will continue to play a vital role in various innovative products.
