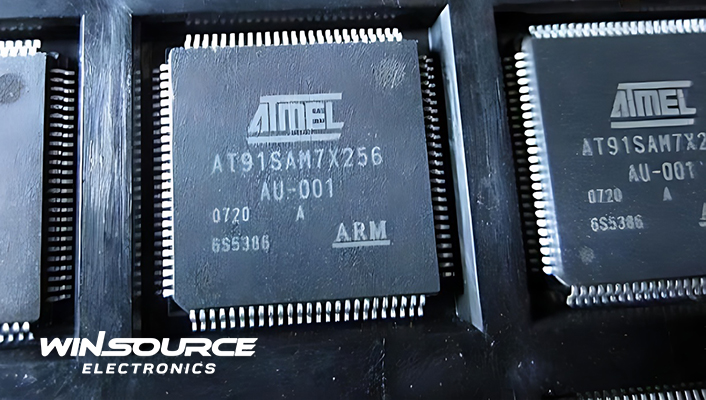

Among the many embedded microcontrollers on the market, the AT91SAM7X256-AU remains a long-standing and reliable choice. Built around the ARM7TDMI core, this 32-bit MCU offers stable performance, a wide range of interfaces, and flexible application support. It continues to be widely used in industrial control systems, communication modules, and embedded gateway designs. This article provides a detailed analysis of its core architecture, functional characteristics, and practical engineering value.
Streamlined Architecture: Classic Core with On-Chip Resources
The AT91SAM7X256-AU is based on the ARM7TDMI processor core, which complies with the ARMv4T architecture. It runs at clock speeds of up to 55 MHz and supports both ARM and Thumb instruction sets. This dual-instruction capability helps balance performance and code density. While the ARM7 architecture has largely been succeeded by the Cortex-M series, it still holds unique advantages in resource-constrained and architecture-stable environments, particularly in industrial applications.
The chip uses a layered bus structure with AHB/APB, which improves internal and peripheral access efficiency. It integrates an advanced interrupt controller (AIC) that enables fast response and prioritization, making it well-suited for real-time embedded tasks.
On-chip memory includes 256 KB of Flash and 64 KB of SRAM. The chip supports both In-Application Programming (IAP) and In-System Programming (ISP). This makes it easy for developers to partition bootloaders and application code, and to implement remote upgrades and online maintenance. The device supports both external crystal oscillators and internal RC oscillators, and it features a programmable PLL for adjusting system frequency. It also includes idle and standby modes for power-saving operation. The architecture is clean and efficient, supporting both reliable performance and simplified system integration.
Industrial Interfaces: Communication, Control, and Signal Acquisition
Designed for industrial and networking applications, the AT91SAM7X256-AU offers a comprehensive set of interfaces. It includes an integrated 10/100 Mbps Ethernet MAC controller compliant with IEEE 802.3. This controller supports full-duplex operation, flow control, frame filtering, and auto-negotiation. It works with popular PHY chips and is suitable for building embedded web servers, Modbus TCP gateways, and remote data-reporting systems.
Another major feature is the built-in CAN controller. It supports the CAN 2.0B protocol with up to 15 message mailboxes. This makes it ideal for fieldbus systems, building automation, railway applications, and industrial robotics, where high-reliability communication is essential.
For serial communication, the chip includes two USART interfaces. These support RS232, RS485, IrDA, and ISO7816 modes and can operate in interrupt or DMA-driven modes. The SPI interface works in both master and slave modes, enabling communication with external flash, DACs, or high-speed sensors. A TWI (I²C-compatible) interface is also available for low-speed peripherals like EEPROM and RTC modules.
The microcontroller features an 8-channel, 10-bit ADC with programmable sampling and interrupt triggering. This is suitable for analog signal acquisition. Combined with a multi-channel PWM controller and three 16-bit timers, the device supports motor control, environmental monitoring, and frequency-based tasks. Up to 80 general-purpose I/O pins are provided. These support pin multiplexing, pull-up configuration, 5V-tolerant input, and edge-triggered interrupts. This allows for flexible peripheral integration and strong noise immunity in harsh environments.
Proven Value and Development Ecosystem
One of the reasons the AT91SAM7X256-AU remains relevant today is its strong development ecosystem and ease of maintenance. Microchip offers excellent development support through platforms like Atmel Studio, Keil MDK, and IAR Embedded Workbench. The chip is compatible with GCC and ARMCC compilers, and developers can use the Atmel Software Framework (ASF) for quick access to peripheral drivers and code examples. It is also fully compatible with FreeRTOS, making it a practical choice for real-time multi-tasking systems such as multi-channel data loggers, embedded gateways, and remote monitoring terminals.
In real-world applications, the AT91SAM7X256-AU is commonly deployed in remote data acquisition systems, industrial controllers, smart instruments, and bootloader-based firmware upgrade platforms. Its Flash memory is large enough to support full network protocol stacks and embedded web interfaces. Combined with its stable Ethernet communication and power-saving features, it is particularly suitable for unattended, high-reliability edge devices.
Although there are now many alternatives based on newer Cortex-M cores, this chip still excels for projects that depend on mature platforms and efficient development processes. It remains a practical and reliable solution for teams that value stability, compatibility, and ease of integration.
A Reliable Classic with Strong Supply Chain Support
The AT91SAM7X256-AU is not about high-end performance. Instead, it offers a winning combination of rich interfaces, stable operation, and a mature development ecosystem. In the transition between legacy and modern architectures, it serves as a solid bridge for maintaining continuity and reducing migration risks. For developers seeking product reliability and proven engineering efficiency, it remains a trustworthy classic.
In today’s uncertain component supply environment, securing consistent access to this kind of MCU is critical for project success. WIN SOURCE, a globally recognized electronic components distributor, provides reliable access to the AT91SAM7X256-AU and many other popular, end-of-life, or hard-to-find chips. Whether you’re designing a new system or maintaining legacy platforms, WIN SOURCE ensures supply continuity through professional service and global inventory, helping engineering teams meet their delivery goals with confidence and efficiency.
