1. Product Overview

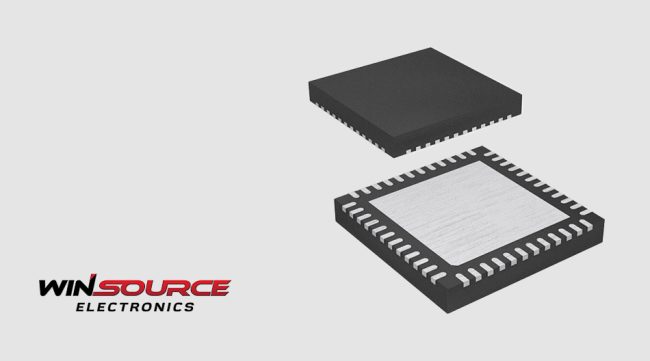

The NRF52832-QFAA-R is a high-performance, ultra-low-power Bluetooth Low Energy (BLE) System-on-Chip (SoC) developed by Nordic Semiconductor. Based on the ARM® Cortex®-M4 processor, it integrates a 2.4 GHz multiprotocol radio, on-chip power management, rich peripheral interfaces, and ample embedded memory—offering a flexible, efficient, and compact wireless communication solution for next-generation smart devices.
Combining exceptional wireless performance with minimal power consumption, the NRF52832-QFAA-R is widely adopted in wearable electronics, smart home systems, medical devices, and industrial IoT applications that require reliable BLE connectivity.
2. Key Technical Features
The NRF52832-QFAA-R strikes a balance between performance, power efficiency, and system integration in BLE SoC design. Its core features include:
Feature Category | Description |
Core Processor | ARM Cortex-M4 @ 64 MHz with FPU, optimized for mid- to high-end BLE use cases |
Protocol Support | BLE 5.2, ANT, and proprietary 2.4GHz protocols with fast switching capability |
Memory Configuration | 512 KB Flash + 64 KB RAM; supports OTA updates and SoftDevice stacks |
Interfaces & Peripherals | UART, SPI, I²C, PWM, ADC, and more, with support for PPI hardware triggering |
Package & Power | QFN-48 (6×6 mm) with built-in DC-DC converter; typical power as low as 11 mW |
Operating Conditions | Industrial-grade temperature range (–40°C to +85°C), suitable for harsh environments |
3. Architectural Advantages & System Integration
The NRF52832-QFAA-R features a fully integrated SoC design, eliminating the complexity of discrete MCU + RF module architectures. Key advantages include:
- Multiprotocol Support: BLE, ANT, and proprietary 2.4GHz protocols for broad wireless ecosystem compatibility
- Low-Power Architecture: Technologies like PPI (Programmable Peripheral Interconnect) and EasyDMA reduce CPU load and lower energy consumption
- SoftDevice Stack: Nordic’s precompiled BLE stack decouples protocol handling from application code, improving stability and development agility
4. Comparison with Other NRF52 Series SoCs
Within Nordic’s NRF52 family, the NRF52832 is positioned as a balanced SoC in terms of power and performance. The table below highlights comparisons with other popular models:
Model | Flash / RAM | Protocol Support | Key Features | Package | Typical Applications |
192 KB / 24 KB | BLE 5.0 | Cost-optimized | QFN-32 | Beacons, simple controllers | |
192 KB / 24 KB | BLE 5.1 | AoA/AoD support for direction finding | QFN-32 | Indoor positioning | |
256 KB / 32 KB | BLE 5.2 + USB | USB support, cost-efficient | QFN-32 | Dongles, wireless peripherals | |
NRF52832-QFAA-R | 512 KB / 64 KB | BLE 5.2 / ANT | Balanced SoC for mainstream use | QFN-48 | Wearables, smart home |
512 KB / 128 KB | BLE 5.2 + Thread/Zigbee | Mesh, long range, industrial temp. | QFN-40 | Lighting, mesh gateways | |
1 MB / 256 KB | BLE 5.2 + Thread/Zigbee + USB + NFC | High-end SoC with BLE Audio support | QFN-73 | Audio terminals, IoT hubs |
5. Typical Application Scenarios
The NRF52832-QFAA-R is widely used in the following systems:
- Wearables: Smart bands, heart rate monitors, fitness trackers
- Smart Home: Wireless remotes, BLE-controlled lighting, smart locks
- Medical Devices: BLE-enabled thermometers, blood pressure monitors, EMG/ECG sensors
- Industrial IoT: Wireless sensor nodes, asset tracking, condition monitoring
- Consumer Electronics: BLE keyboards, mice, gaming peripherals, voice remotes
6. Engineering Value & Selection Advantages
Dimension | Engineering Value |
Power Efficiency | Ultra-low power design with deep sleep and fast wake-up modes |
Communication Range | High sensitivity and link budget for stable, long-range BLE connections |
System Simplification | Integrated SoC reduces BOM cost and board complexity |
Development Flexibility | Multi-protocol support, programmable peripherals, SoftDevice framework |
Broad Application Coverage | Suitable for both low-power sensors and complex central controllers |
As a flagship product in the Nordic NRF52 family, the NRF52832-QFAA-R combines excellent protocol versatility, computational performance, and low-power operation—making it a reliable cornerstone for wireless connectivity in the IoT era. It serves both constrained power nodes and complex protocol hubs, providing a solid foundation for any BLE-centric application.
