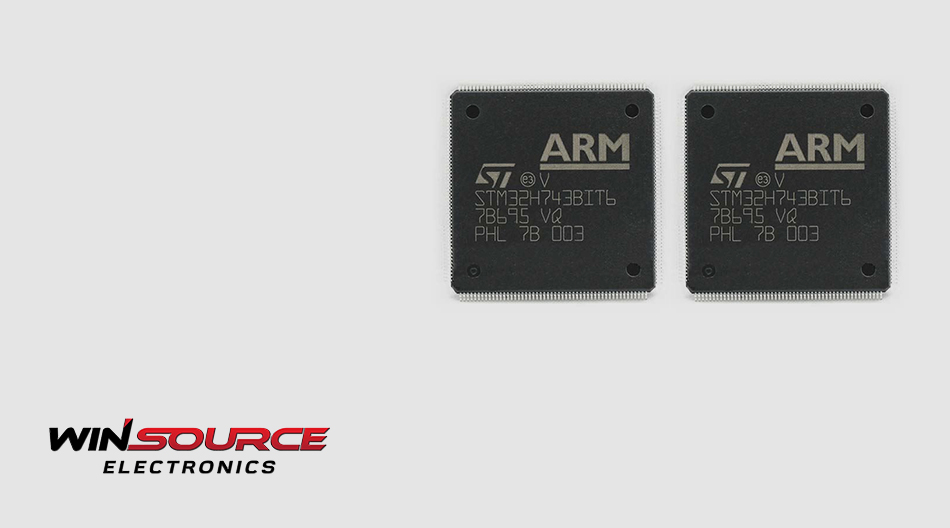

In the world of high-performance embedded systems, STMicroelectronics’ STM32H7 family has long been recognized as a line of MCUs delivering MPU-class performance. Among them, the STM32H743BIT6 stands out as a flagship model. It not only pushes the limits of single-core Cortex-M7 performance but also offers exceptional flexibility in power efficiency, memory design, and peripheral scalability. This article explores its full technical potential—from core architecture to ecosystem and application perspectives.
1. Architectural Breakthrough: 400 MHz Cortex-M7 Driving Extreme Compute Power
The STM32H743BIT6 is built on the ARM® Cortex-M7 core, running at up to 400 MHz and supporting DSP instructions along with a double-precision floating-point unit (FPU). Compared with the Cortex-M4 series, it delivers roughly twice the processing performance, particularly in areas such as signal filtering, motion control, and digital audio processing. ST’s exclusive ART Accelerator™ technology combines instruction caching and prefetch mechanisms, allowing near-zero wait states when executing from external Flash—balancing high frequency and real-time determinism. In CoreMark benchmarks, the STM32H743BIT6 easily exceeds 3000 points, establishing itself as a performance benchmark in the MCU landscape.
2. Memory and Bandwidth Design: AXI Bus Enabling True Parallelism
To sustain high-frequency operation, ST equipped the STM32H743BIT6 with a multi-layer AXI bus matrix, allowing concurrent access among the CPU, DMA, graphics engine, and peripherals. The device integrates 2 MB of Flash and 1 MB of SRAM, with external memory expansion through SDRAM or QSPI Flash—ideal for large buffers and multitasking workloads.
Its Tightly Coupled Memory (TCM) enables ultra-low-latency instruction and data access, making control algorithms and signal processing more efficient. Additionally, the combination of L1 cache and multi-bank SRAM architecture ensures sustained throughput and responsiveness in complex, multi-threaded control systems.
3. Peripheral System: Comprehensive Connectivity for Industrial and Real-Time Networks
The STM32H743BIT6 includes more than 35 communication interfaces, among them Ethernet MAC, CAN-FD, USB OTG HS, SDIO, SPI, I²C, and UART. Its triple 12-bit ADC achieves sampling rates up to 3.6 MSPS, addressing the stringent demands of industrial control, power management, and precision measurement. Importantly, the built-in DFSDM (Sigma-Delta Digital Filter Modulator) allows direct high-resolution audio and sensor signal acquisition without external components. In motor-control applications, ST provides a Motor Control SDK optimized for the STM32H743BIT6, supporting FOC (Field-Oriented Control) algorithms, PWM generation, and closed-loop current feedback for smooth, low-jitter motion performance.
4. Power, Reliability, and Thermal Management: Balancing Performance and Efficiency
High performance does not come at the cost of excessive power draw. The STM32H743BIT6 uses Dynamic Voltage Scaling (DVS) and multiple Sleep / Stop modes to balance energy and performance dynamically. At a typical 240 µA / MHz operating current, it delivers one of the best efficiency ratios among high-end MCUs.
Operating across a –40 °C to 125 °C temperature range, it integrates ECC protection, watchdog timers, clock monitoring, and brown-out protection. This industrial-grade reliability ensures stable operation under harsh conditions, making it a preferred choice for power electronics, automotive systems, and mission-critical industrial applications.
5. Ecosystem and Application Expansion: From Development to Supply Chain Enablement
ST has built a mature development ecosystem around the STM32H7 series:
- STM32CubeIDE integrates compilation, debugging, and project generation.
- STM32CubeMX simplifies clock and peripheral configuration.
- HAL / LL drivers and FreeRTOS support enable rapid system design.
- The official Nucleo-H743ZI2 development board allows immediate prototyping and validation.
At the application level, it is widely used for:
- High-speed industrial controllers and PLCs
- Edge AI inference and real-time data acquisition
- Medical imaging and robotic systems
- Multi-protocol communication gateways and IoT nodes
From a market perspective, with MCU production capacity stabilizing through 2024–2025, demand for STM32H743BIT6 continues to grow across industrial, automotive, and edge-AI sectors.
With the growing demand for smart manufacturing and AI edge computing, a stable supply and real-time inventory of high-performance MCUs are becoming increasingly critical. As a leading global distributor of electronic components, WIN SOURCE maintains long-term inventory and multi-regional distribution capabilities for its STM32 series, providing customers with reliable procurement channels and technical support.
