As embedded systems evolve toward miniaturization, lower power consumption, and higher integration, designers face a constant trade-off: how to balance limited I/O resources with growing system functionality. The DS24B33Q+T&R, a 1-Wire EEPROM with a globally unique ID, offers a highly efficient solution. Combining single-wire communication, non-volatile storage, and identity recognition in one chip, it enables simpler architectures in resource-constrained environments.
1-Wire Protocol: A Key Enabler of Simpler Design
Unlike I²C or SPI, which require multiple lines, the 1-Wire protocol uses just one data line plus ground. This significantly simplifies PCB routing and reduces connector count. The DS24B33Q+T&R supports data transmission, device addressing, and even power delivery over a single wire when using parasitic power.
It integrates a 64-bit globally unique ROM ID, allowing multiple devices on the same bus. This makes it ideal for applications requiring authentication, device identification, or configuration. Use cases include flexible PCBs, wearables, medical probes, and compact industrial sensors.
Its streamlined wiring reduces connector complexity and lowers BOM cost. More importantly, it represents a shift in embedded system design—from feature integration to structural optimization.
Unlocking More MCU Resources
In ultra-low-power designs using MCUs like STM32L or MSP430, I/O availability is always limited. With DS24B33Q+T&R, only one general-purpose IO pin is needed to perform EEPROM read/write and identification tasks—no extra communication peripherals required.
This frees UART, ADC, or SPI lines for core system functions. In disposable medical sensors, for instance, EEPROM communication can run on a single IO while other peripherals handle critical data acquisition.
The chip also supports bit-level communication. This makes it easy to implement in bare-metal or lightweight RTOS environments, with no dependence on hardware I²C or SPI blocks. The result is a compact, reliable, and fully functional embedded system with reduced wiring, soldering, and system overhead.
Small Package, Strong Capabilities

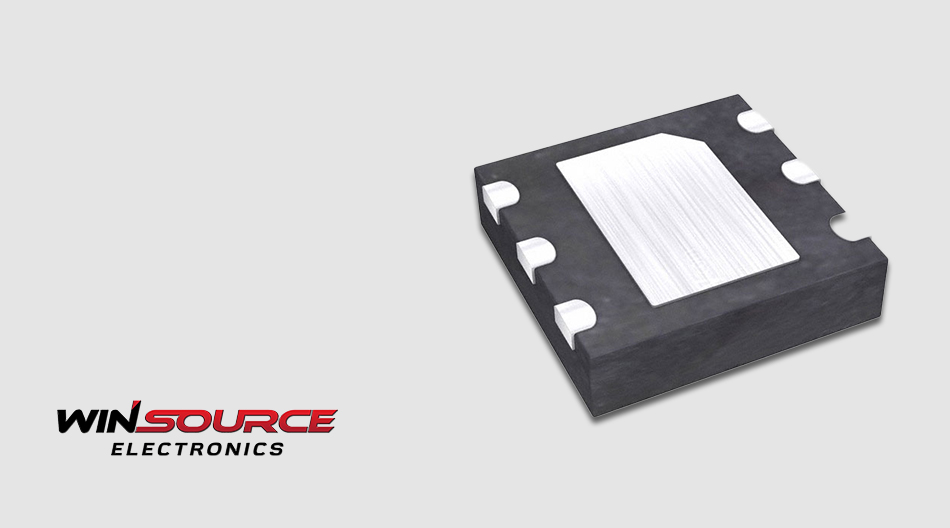

The DS24B33Q+T&R comes in a tiny 2mm × 3mm TDFN package, just 0.75mm thick. It’s perfect for space-constrained applications such as modular sensors, wearable devices, and miniaturized medical modules.
Powering options are flexible. It supports parasitic power, drawing energy directly from the data line. This simplifies power routing and removes the need for an additional Vcc pin.
The device operates from -40°C to +85°C, making it robust for industrial and outdoor environments. Its ESD protection up to ≥8kV HBM ensures resistance to electrostatic damage, while the data retention of over 40 years and 200,000 write cycles offer long-term reliability.
These specs position it well for tasks like configuration storage, device authentication, and parameter logging in mission-critical embedded products.
Engineering Advantages Over Traditional EEPROMs
Compared to standard I²C EEPROMs, DS24B33Q+T&R offers several compelling benefits:
- Fewer pins: Only one data line required, saving IOs.
- Built-in unique ID: Enables hardware-level device authentication.
- Parasitic power support: No need for an extra power pin.
- Multi-device support on one bus: No address jumpers or hardcoding needed.
Though 1-Wire requires tighter timing control in software, experienced embedded developers find it easy to manage. With mature code libraries and clear protocol documentation, its implementation cost is minimal. The gains in hardware simplicity and scalability far outweigh the effort.
Optimized for the Next Generation of Embedded Systems
When minimalism meets reliability, DS24B33Q+T&R becomes more than a memory chip. It represents a design philosophy—to do more with less. With just a single data line, it delivers complete EEPROM functionality, secure identity, and efficient power delivery.
Whether you’re building smart sensors, medical disposables, RFID-like tags, or industrial automation modules, this device offers a high-reliability, low-complexity solution.
At WIN SOURCE, we offer reliable supply and technical guidance for DS24B33Q+T&R. From early design to mass production, we help engineers choose the right components and build efficient, future-proof embedded systems. Explore more at Win Source.
