Overview

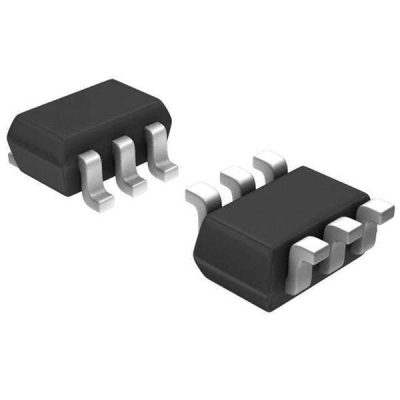

The FDG8850NZ is a dual N-channel enhancement-mode MOSFET from Onsemi , packaged in a compact SuperSOT-6 package , suitable for high-density PCB designs.
This device integrates two independent N-channel MOSFETs , featuring low on-resistance (RDS(on)), fast switching characteristics, and good thermal performance . It is widely used in load switching, power path control, battery management, and DC/DC conversion circuits.
The FDG8850NZ is particularly suitable for portable devices and embedded system designs that require space optimization, high efficiency, and low loss .
Core parameters
| Parameter Items | Specification |
| Device type | Dual N-channel MOSFET |
| Drain-source voltage (VDS) | 30V |
| Continuous drain current (ID) | 2.8A (single channel, typical) |
| On-resistance (RDS(on)) | 85mΩ @ VGS=4.5V (typical) |
| Gate charge (Qg) | Low (suitable for high-speed switching) |
| Power dissipation | Optimized heat dissipation design |
| Encapsulation type | SuperSOT-6 (SOT-23-6) |
| Operating temperature range | -55°C ~ +150°C |
| polarity | N channels × 2 (independent) |
| Environmental standards | RoHS / Lead-free |
Features
- Dual MOSFET integrated design
- Two independent N-channel MOSFETs are integrated in a single package.
- Saves PCB space and simplifies design.
- Low on-resistance (RDS(on))
- Reduce conduction losses and improve system efficiency
- Suitable for power path and load switching
- Quick on/off capability
- Low gate charge (Qg)
- Improve switching efficiency and reduce switching losses
- Wide voltage adaptability (30V)
- Suitable for 5V / 12V / 24V systems
- Excellent thermal performance
- Supports high current loads
- Improve system reliability
- Small-size package
- SuperSOT-6 is suitable for high-density designs.
- Commonly used in portable devices and compact modules
Typical application scenarios
- Power path management
- Automatic switching between battery and adapter
- ORing circuit
- load switch
- MCU controls the power switch of peripheral devices
- USB / Peripheral Power Control
- DC/DC conversion circuit
- Synchronous rectification
- Low-side/high-side switch
- Battery Management System (BMS)
- Charge and discharge control
- Battery protection
- Portable electronic devices
- Smart handheld devices
- IoT module
Typical circuit application description
- The FDG8850NZ can be used to build:
- Dual-channel load control circuit
- Reverse current protection (Back-to-Back MOS structure)
- Automatic power switching (Ideal Diode) circuit
- For example, in battery-powered systems:
- Two MOSFETs can form a reverse protection structure.
- Prevents reverse current flow and protects system safety.
Performance Comparison
| Index | FDG8850NZ | AO3400A (Single MOS) | Si2302 (single MOS) |
| Number of MOS | Dual Channel | single channel | single channel |
| VDS | 30V | 30V | 20V |
| RDS(on) | 85mΩ | 30mΩ | 50mΩ |
| Packaging | SOT-23-6 | SOT-23 | SOT-23 |
| application | Dual-channel control | single-channel switch | Low power applications |
The advantage of the FDG8850NZ lies in its dual-channel integration and system design flexibility .
Manufacturer Profile: onsemi
onsemi is one of the world’s leading power semiconductor manufacturers, focusing on:
- MOSFET
- Power Management
- Automotive electronics
Its products are widely used in the industrial and automotive sectors due to their high reliability, high efficiency, and long-term supply capabilities .
Why choose FDG8850NZ?
● Dual MOSFET integration saves PCB space
● Low on-resistance improves system efficiency
● Supports 30V power systems
● Suitable for load switching and power path control
● Small package for high-density designs
● Industrial-grade temperature range for high reliability
● Onsemi brand guarantee for long-term stable supply
Frequently Asked Questions (FAQ)
Q1: Can it replace two separate MOSFETs?
Yes. The FDG8850NZ integrates dual N-channel MOSFETs , enabling dual-channel switching or back-to-back applications within a single package. This effectively reduces the number of external components, saves PCB space, and improves system integration and reliability.
Q2: Is it suitable for battery protection?
Yes. This device is suitable for applications such as reverse connection protection, charge/discharge control, and load switching . Its low on-resistance helps reduce power consumption and improve system efficiency, and it is commonly used in lithium battery management and power path control for portable devices.
