* Question
What are the main characteristics of magnetic diodes?
* Answer

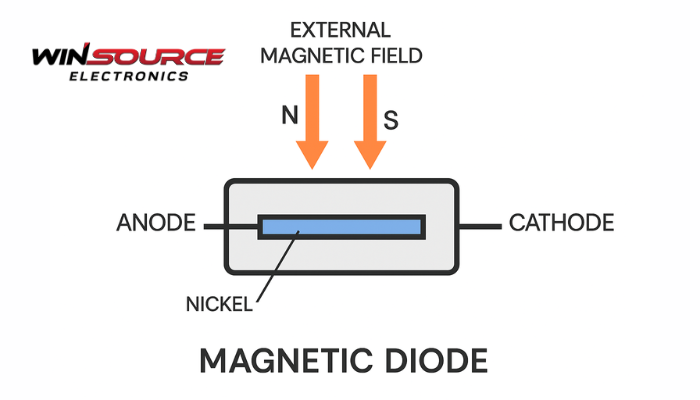

A magnetic diode, also known as a magnetically controlled diode or magnetic-field-sensitive diode, is a semiconductor device whose electrical characteristics vary under the influence of an external magnetic field.
Unlike conventional diodes that depend solely on p–n junction behavior, magnetic diodes integrate magneto-sensitive materials or magnetic layers to achieve field-dependent current–voltage properties.
These devices are used in sensing, switching, and protection circuits that require magnetic field detection or modulation.
1. Magnetic Sensitivity
The defining feature of a magnetic diode is its ability to respond to magnetic flux density (B-field).
When a magnetic field is applied perpendicular to the current path, the carrier mobility and recombination rate in the semiconductor are altered.
This effect changes the forward voltage drop or reverse current of the diode in proportion to the field strength.
Purpose: Enables magnetic field detection or modulation of current flow without the need for moving mechanical parts.
2. Nonlinear Current–Voltage (I–V) Characteristics
Similar to conventional diodes, magnetic diodes exhibit rectification — allowing current to flow primarily in one direction.
However, under magnetic influence, the I–V curve shifts due to the magnetoresistive effect.
This change can manifest as:
Altered forward threshold voltage, or
Modified reverse leakage current.
Effect: Allows the diode to serve as both a rectifier and a magnetic sensor, depending on circuit design.
3. Magnetoresistive and Hall Effects
In certain magnetic diodes (especially those fabricated with compound semiconductors like GaAs or InSb):
The Hall effect and magnetoresistance phenomena dominate the response.
The presence of a magnetic field generates a transverse voltage, influencing overall current flow and conduction path.
Benefit: Supports precise magnetic field measurement and current direction sensing in compact solid-state designs.
4. High Reliability and Solid-State Operation
Magnetic diodes are solid-state devices, containing no mechanical components or moving parts.
They provide long operational life, fast response time, and good temperature stability.
Their operation is purely electronic, making them suitable for harsh or high-vibration environments where traditional magnetic sensors (like reed switches) may fail.
Use Case: Ideal for automotive systems, magnetic proximity sensing, and electronic compass modules.
5. Integration Capability
Modern magnetic diodes can be integrated with CMOS or GaN circuits for compact, intelligent sensing modules.
They can also be paired with Hall effect amplifiers or analog-to-digital interfaces for real-time magnetic signal conversion.
Example Applications:
Magnetic field and current sensors
Non-contact position detectors
Motor speed and direction sensing
Electromagnetic protection circuits
Summary Table
Characteristic | Description | Application |
Magnetic Sensitivity | Electrical behavior changes with magnetic field strength | Field sensing, signal modulation |
Nonlinear I–V Response | Rectifying property altered by B-field | Smart rectifiers, current control |
Hall & Magnetoresistive Effects | Voltage and resistance vary with field | Precision magnetic measurement |
Solid-State Reliability | No moving parts, high durability | Automotive and industrial sensors |
Integrability | Compatible with modern IC technologies | Embedded sensing and protection systems |
Conclusion
In summary, magnetic diodes combine the rectifying properties of conventional diodes with magnetic responsiveness, enabling a new class of devices for non-contact sensing, current detection, and intelligent control.
Their solid-state reliability and fast magnetic response make them essential in next-generation mechatronic and power electronic systems.
