* Question
What is the inverse piezoelectric effect or electrostrictive effect?
* Answer
The inverse piezoelectric effect and the electrostrictive effect are two related but distinct physical phenomena involving deformation of materials under the influence of an electric field. Here’s a structured breakdown to clarify both:

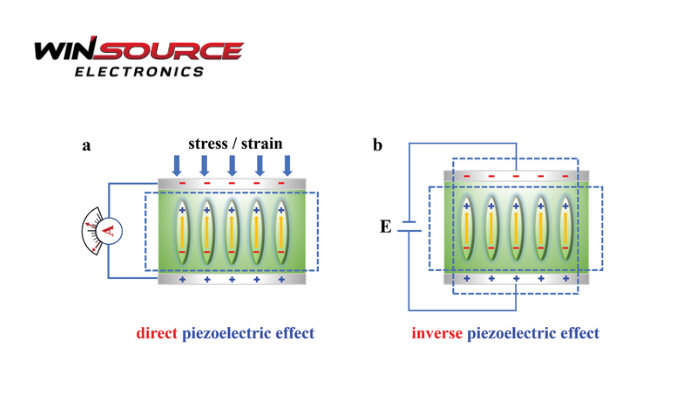

1. Inverse Piezoelectric Effect
Definition:
The inverse piezoelectric effect refers to the phenomenon where a piezoelectric material changes shape (mechanically deforms) when an electric field is applied across it.
Key Characteristics:
Linear response: The deformation (strain) is directly proportional to the applied electric field.
Occurs in non-centrosymmetric crystals, such as quartz, PZT (lead zirconate titanate), and BaTiO₃.
It is the reciprocal of the direct piezoelectric effect, where mechanical stress generates an electric charge.
Commonly used in:
Piezoelectric actuators
Precision positioning systems
Ultrasonic transducers
Mathematical Expression:
S=d⋅E
Where:
S = strain (mechanical deformation)
d = piezoelectric coefficient
E = electric field
2. Electrostrictive Effect
Definition:
The electrostrictive effect is a property of all dielectric materials where an applied electric field induces a mechanical strain, but the response is quadratic rather than linear.
Key Characteristics:
Nonlinear: Strain is proportional to the square of the electric field:
S∝ E2
Present in all dielectric materials, but only significant in certain ceramics like PMN (lead magnesium niobate) or PVDF polymers.
Unlike piezoelectric materials, electrostrictive strain is always in the same direction regardless of the field polarity.
Often used in:
High-precision actuators
Smart materials for adaptive optics
Energy harvesting and MEMS
Inverse Piezoelectric vs. Electrostrictive Effects
Feature | Inverse Piezoelectric Effect | Electrostrictive Effect |
Material Type | Piezoelectric crystals/ceramics | All dielectrics (some strong ones) |
Strain–Field Relation | Linear (S∝E) | Quadratic (S∝E2) |
Field Polarity Dependence | Directional | Always positive (regardless of sign) |
Reversibility | High | Moderate |
Temperature Sensitivity | Moderate | Often more stable |
Applications | Precision motion, sensors, buzzers | Adaptive optics, precision actuators |
Summary
The inverse piezoelectric effect is central to the operation of piezo actuators and sensors, where electrical energy is directly converted into mechanical motion.
The electrostrictive effect, though present in all dielectrics, becomes practically significant in engineered materials for high-precision applications.
Both effects are part of the broader category of electromechanical coupling phenomena, but they differ in symmetry, linearity, and application.
