* Question
What is the substrate modulation effect in semiconductor devices?
* Answer
The substrate modulation effect, also known as the body effect, is an important phenomenon in MOSFET (Metal–Oxide–Semiconductor Field-Effect Transistor) operation. It describes how the voltage applied to the substrate (or body) influences the threshold voltage (V<sub>TH</sub>) of the transistor.
1. Basic Concept
In a MOSFET, the substrate (body) is usually connected to the lowest potential (for NMOS) or the highest potential (for PMOS).
When the substrate voltage changes relative to the source terminal, it alters the potential barrier in the channel region.
This modulation of the channel potential causes a change in the transistor’s threshold voltage.
2. Mathematical Relationship
The threshold voltage with substrate bias can be expressed as:
VTH=VTH0+γ(√(2ϕF+VSB)−√2ϕF)
Where:
VTH0: Threshold voltage with zero substrate bias
γ: Body effect coefficient
ϕF: Fermi potential
VSB: Source-to-body voltage
This equation shows that as V<sub>SB</sub> increases (the substrate becomes more reverse-biased), V<sub>TH</sub> also increases.

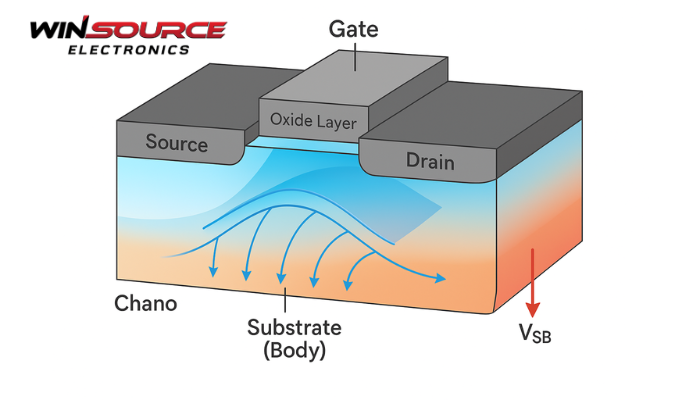

3. Physical Interpretation
The substrate forms a PN junction with the source and drain.
Applying a reverse bias widens the depletion region, requiring a higher gate voltage to invert the channel.
As a result, the transistor turns on at a higher threshold voltage.
4. Impact on Circuit Performance
Reduced drive current: Higher threshold voltage lowers channel current, slowing down switching speed.
Power variation: Affects the dynamic behavior of CMOS circuits, especially in analog and low-voltage applications.
Design consideration: Important in multi-threshold CMOS (MTCMOS) and body-bias control techniques used for power optimization.
Summary
The substrate modulation effect (body effect) refers to the change in a MOSFET’s threshold voltage caused by a voltage difference between the substrate and the source.
It impacts transistor performance, influencing current flow, switching speed, and power consumption, and is a key parameter in low-power and analog circuit design.
