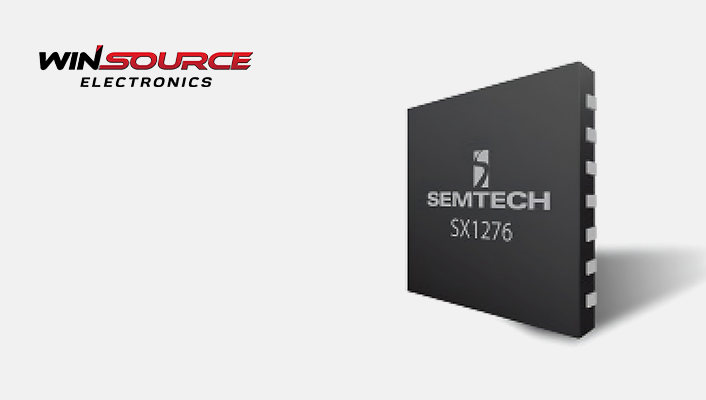

As the scale of the Internet of Things (IoT) continues to expand, wireless communication technologies that offer long range and low power consumption have become critical for edge node design. The SX1276IMLTRT is a highly integrated and high-performance LoRa wireless transceiver chip. With its excellent RF performance and power management capabilities, it is widely used in applications such as smart agriculture, industrial monitoring, remote metering, and environmental sensing. This article analyzes the SX1276IMLTRT from four aspects: RF architecture, modulation mechanism, power-saving strategy, and interference resistance. It aims to explore how this chip achieves a perfect balance between ultra-low power and long-distance transmission.
1. RF Architecture: High Integration and Wide Frequency Coverage
The SX1276IMLTRT supports a wide frequency range from 137 MHz to 1020 MHz. It covers major global ISM bands such as 433 MHz, 470 MHz, 868 MHz, and 915 MHz, making it suitable for use in different regions. Its core RF architecture consists of the following components:
- Low-Noise Amplifier (LNA):Enhances receiver sensitivity, ensuring accurate decoding of weak signals over long distances.
- Fractional-N PLL Synthesizer:Supports fast frequency hopping and complies with FHSS protocols.
- Programmable Power Amplifier (PA):Delivers adjustable output power from +2 dBm to +20 dBm, suitable for various transmission ranges.
- I/Q Modulator and Demodulator:Natively supports LoRa™ spread spectrum as well as traditional FSK and OOK modulations.
This architecture combines high sensitivity and configurable parameters. It provides a solid foundation for reliable LoRa communications even in low signal-to-noise ratio (SNR) environments.
2. LoRa Modulation: Overcoming Distance and Interference Challenges
One of the core strengths of the SX1276IMLTRT is its native support for LoRa™ spread spectrum modulation. LoRa uses Chirp Spread Spectrum (CSS), which enables reliable communication even under extremely low SNR conditions. Compared to traditional FSK or OOK modulation, LoRa offers stronger resistance to interference and longer transmission range. In typical field deployments, the chip can decode signals even when they are more than 20 dB below the noise floor. This significantly enhances its ability to operate in complex terrain and harsh environments.
The chip supports spreading factors from SF7 to SF12 and multiple bandwidth settings of 125, 250, and 500 kHz. These parameters can be adjusted based on node density and application requirements. Developers can flexibly trade off between data rate and communication range. Under line-of-sight conditions, the SX1276IMLTRT can transmit over distances exceeding 15 kilometers. This makes it ideal for large-scale, low-maintenance networks such as forest monitoring, mountain sensors, and water metering in smart cities.
3. Power-Saving Mechanisms: Hardware and Firmware Synergy
Power efficiency is a key concern in modern IoT deployments. The SX1276IMLTRT demonstrates outstanding performance in this regard. It features multiple power modes to support energy-efficient operation:
- In Sleep Mode, the current consumption is as low as 0.2 μA, suitable for deep standby conditions.
- In Standby Mode, the crystal oscillator remains active, allowing quick wake-up with just 1.5 μA typical current.
- In Receive Mode, the chip consumes about 10 mA.
- In Transmit Mode, it draws around 28 mA at +13 dBm, and supports up to +20 dBm when using an external PA.
These modes can be switched dynamically through the SPI interface. When combined with an MCU’s low-power scheduling algorithm, the system can implement smart wake-up, periodic listening, and event-driven transmissions. This effectively extends battery life in long-term deployments.
In addition, the chip’s output power is programmable. Engineers can fine-tune signal strength based on deployment density, communication distance, and power supply conditions. This flexibility enables developers to achieve maximum coverage with minimum energy consumption. As a result, the SX1276IMLTRT is particularly well-suited for battery-powered devices in remote or hard-to-reach locations.
4. Spectrum Efficiency and Interference Immunity
In dense deployments or urban environments, interference is a major challenge. The SX1276IMLTRT addresses this through several built-in features that enhance interference resilience and spectrum utilization. It supports Frequency Hopping Spread Spectrum (FHSS), allowing it to switch channels quickly when interference is detected. This ensures communication stability over time.
Its built-in Listen Before Talk (LBT) feature helps avoid channel collisions in multi-node networks. The chip also supports real-time RSSI detection, which allows it to evaluate signal strength dynamically and choose optimal channels. With a high adjacent channel rejection ratio (>55 dB), the chip minimizes interference from nearby frequencies. Combined with CRC error checking and automatic retransmission, the SX1276IMLTRT maintains high communication reliability even in noisy, industrial, or indoor environments like factories, basements, and high-rise buildings.
With its highly integrated RF design, robust LoRa spread spectrum modulation, flexible power management, and strong interference resistance, the SX1276IMLTRT provides a reliable hardware foundation for building low-power, long-range IoT networks. It strikes a valuable balance between communication reliability, battery life, and deployment flexibility.
For projects that demand both extended communication range and minimal power usage, the SX1276IMLTRT stands out as a dependable solution. At WIN SOURCE, we offer original, in-stock SX1276IMLTRT components, along with expert support for selection and application integration. Whether you’re developing a smart sensor node or a large-scale LPWAN deployment, Win Source is your trusted partner for high-quality components and engineering insight.
