In high-speed data transmission, precision measurement, and communication front-end systems, engineers are increasingly favoring differential signal chains. This approach ensures better signal integrity, stronger noise immunity, and greater transmission stability. At the heart of such architectures, the differential amplifier often dictates the upper performance limit of the entire signal chain.
Among the many available differential amplifiers, the AD8132ARMZ from Analog Devices stands out as a popular choice. It combines wide bandwidth, low distortion, and rail-to-rail output in a compact package. These attributes make it a powerful tool for building high-performance differential signal links. This article explores the key features of AD8132ARMZ and analyzes its real-world applications through practical circuit examples.
Compact Design with High-Speed Capability: AD8132ARMZ Overview

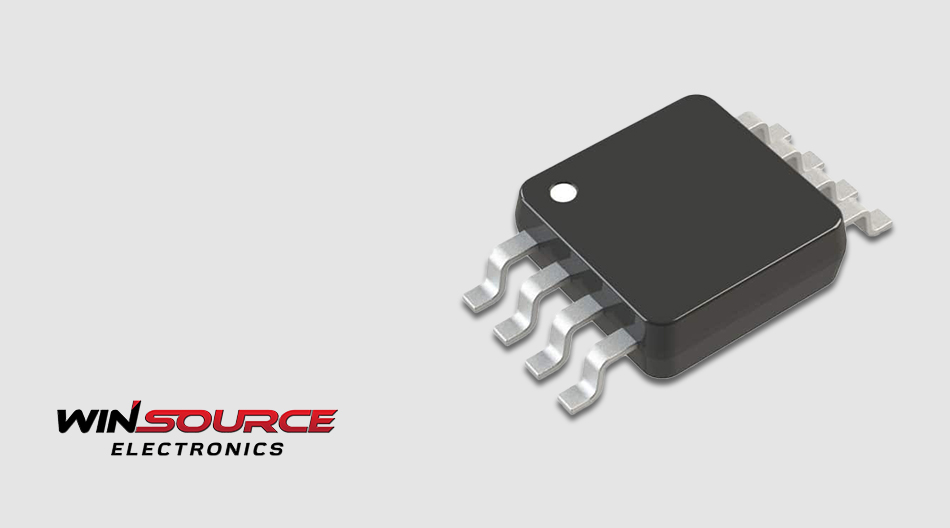

The AD8132ARMZ is a dual-channel differential amplifier housed in a compact MSOP-8 package. It delivers a compelling balance between size and performance. Its key specifications include:
- Bandwidth (Gain = 1): 350 MHz
- Total Harmonic Distortion (THD): –92 dBc @ 5 MHz
- Supply Voltage Range: +2.7 V to +12 V or ±1.35 V to ±6 V
- Output Type: Rail-to-rail differential output
- Common-Mode Rejection Ratio (CMRR): > 80 dB
- Input Offset Voltage: ±1 mV (typical)
This combination of specifications enables its use in high-speed ADC drivers, video signal amplification, audio interfaces, cable driving, and industrial measurement systems.
Beyond Amplification: Key Technical Advantages
1. Wide Bandwidth and Low Distortion: Ensuring Signal Fidelity
With a 350 MHz bandwidth, the AD8132ARMZ is capable of handling high-frequency signals without loss, even in systems with high sampling rates. Its –92 dBc THD at 5 MHz ensures excellent linearity. This is vital in applications where spectral integrity matters, such as communication baseband chains, radar front ends, and image acquisition systems.
2. Integrated Single-Ended to Differential Conversion
Traditionally, converting single-ended signals to differential ones required transformers or complex op-amp stages. These add cost, complexity, and sensitivity to temperature drift. The AD8132ARMZ integrates this function internally. Engineers can easily configure high-quality differential outputs using just a simple resistor network. This simplifies design, reduces component count, and saves power.
3. Rail-to-Rail Output: Maximizing Dynamic Range
The amplifier supports rail-to-rail output, even in low-voltage systems. For example, with a 3.3 V supply, it can still drive signals across almost the full voltage swing. This improves the input utilization of downstream ADCs or receivers. Such capability is ideal for portable measurement tools or low-power IoT gateway designs.
4. Excellent Common-Mode Rejection for Harsh Environments
In complex environments such as industrial control cabinets, motor drives, or RF transceivers, common-mode interference is a frequent concern. The AD8132ARMZ offers a typical CMRR of 80 dB. This helps suppress interference and maintain signal chain robustness and system reliability.
Real-World Applications of AD8132ARMZ
Application 1: High-Speed ADC Driver
The AD8132ARMZ is commonly used to drive high-speed ADCs like the AD9257 or the ADS42xx series. It converts and balances single-ended signals from the previous stage while setting an appropriate common-mode voltage for the ADC. Its high linearity ensures accurate sampling, and the rail-to-rail output maximizes the available input range—making it ideal for high-resolution analog front ends.
Application 2: Differential Video Buffer
In video transmission applications such as HD-SDI, CameraLink, or LVDS interfaces, the AD8132ARMZ serves as a reliable signal buffer. It stabilizes amplitude and phase, preventing signal degradation or crosstalk during transmission. Its high-speed performance supports resolutions like 1080p, 4K, and beyond.
Application 3: High-Fidelity Audio Amplification and Isolation
In premium audio systems, the AD8132ARMZ is used to buffer DAC outputs and generate balanced differential signals. This helps eliminate ground loops and power noise while improving signal-to-noise ratio and audio clarity. It is well-suited for use in high-end headphone amplifiers and audio analyzers.
Design Guidelines: Unlocking Full Performance
To fully harness the potential of AD8132ARMZ, the following design practices are recommended:
- Output Impedance Matching: Use series termination resistors (e.g., 50Ω) to match transmission lines and minimize signal reflections.
- Symmetrical Feedback Network: Precisely match the feedback resistors for both channels to maintain signal balance.
- Robust Power Supply Decoupling: Place 0.1 µF and 10 µF capacitors close to the supply pins to suppress high-frequency noise.
- Common-Mode Level Setting: Use a voltage divider or external reference source to set the output common-mode voltage according to the next stage’s requirements.
- Thermal Management: While power consumption is low, good PCB layout and thermal practices are essential in high-frequency applications to ensure long-term stability.
The AD8132ARMZ is not merely an amplifier—it is a performance-driven component that integrates flexibility, robustness, and high-speed capability. Its deployment in ADC interfaces, video systems, test instruments, and audio devices underscores its versatility and strong electrical performance.
In modern systems where high frequency, low distortion, and excellent signal-to-noise ratios are critical, the AD8132ARMZ offers a compact, easy-to-integrate, and reliable solution. For engineers seeking to optimize overall system performance, it remains a trustworthy and indispensable building block.
WIN SOURCE offers the AD8132ARMZ in stock and provides a broad range of high-quality electronic components. For BOM matching, replacement suggestions, or real-world application insights, please visit our official website or contact our technical support team.
