In the relentless pursuit of industrial advancements, reliability and efficiency reign supreme. When it comes to critical control circuits, choosing the right power relays becomes important.

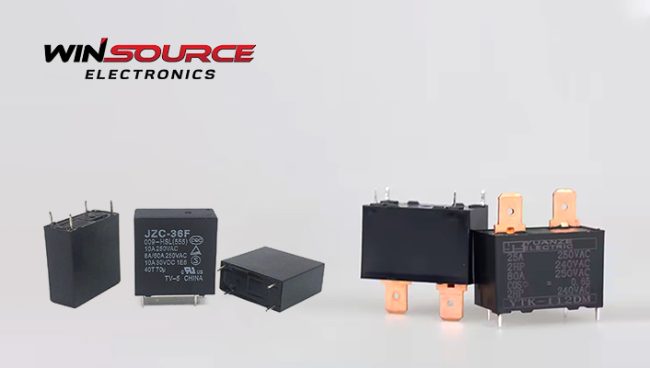

Introducing the YTK-112DM and JZC-36F, two power relays engineered to conquer demanding applications with unwavering performance.
Let’s learn more about these power relays.
YTK-112DM: A Plugin Powerhouse
The YTK-112DM is a plug-in power relay with dimensions of 15.7 x 30.1 mm, making it compact and suitable for various applications. Compliant with ROHS standards, this relay is powerful and environmentally friendly. Its key specifications make it a standout choice for those seeking a reliable and efficient power relay solution.
Built For Heavy-Duty Tasks
Imagine a relay that combines compact dimensions (15.7 x 30.1 mm) with the muscle to handle a whopping 20A at 250VAC and 5000VA. That’s the YTK-112DM in a nutshell. This plugin excels in applications demanding high switching capacity, making it ideal for motor controls, lighting systems, and industrial automation.
Unwavering Reliability, Guaranteed
The YTK-112DM’s robust design boasts an impressive mechanical life of 1 million operations and an electrical life of 100,000 operations. This translates to long-lasting performance and minimal downtime, minimizing maintenance costs and maximizing operational efficiency.
Seamless Integration and Superior Contact Materials
Equipped with a 1A contact arrangement and initial contact resistance of 100mΩ (at 1A 6VDC), the YTK-112DM ensures smooth switching and minimal signal distortion. Its silver alloy contacts further elevate its performance, offering exceptional conductivity and resistance to wear and tear.
JZC-36F: A Compact Dynamo with Switching Prowess
The JZC-36F relay, with its 10A switching capabilities and SPST-NO (Single Pole, Single Throw – Normally Open) and SPDT (Single Pole, Double Throw) configurations, is a compact dynamo designed for applications requiring precision and versatility.
Key Specifications of JZC-36F
1. Contact Arrangement: 1A
Like the YTK-112DM, the JZC-36F features a 1A contact arrangement, making it suitable for single-pole applications where simplicity and reliability are paramount.
2. Initial Contact Resistance: Max 100mΩ (at 1A 6VDC)
Maintaining low initial contact resistance is critical for the JZC-36F’s performance. With a maximum resistance of 100mΩ at 1A and 6VDC, this relay ensures efficient electrical connectivity from the outset.
3. Contact Material: Silver Alloy
Utilizing silver alloy as its contact material, the JZC-36F benefits from the enhanced electrical conductivity and durability associated with this material. This choice contributes to the relay’s overall reliability.
4. Contact Rating (Resistive Load): 10A 250VAC, 10A 30VDC, TV-5 125VAC
The JZC-36F, like the YTK-112DM, boasts a robust contact rating, allowing it to handle a maximum load of 10A at 250VAC or 30VDC. The TV-5 125VAC rating further extends its compatibility with various resistive loads.
5. Switching Voltage: Max 250VAC/30VDC
With a maximum switching voltage of 250VAC for alternating current and 30VDC for direct current, the JZC-36F is well-equipped to manage applications where voltage variations are common.
6. Switching Current: Max 10A
The JZC-36F exhibits a maximum switching current of 10A, enabling it to effectively control electrical currents in demanding scenarios. This feature ensures reliable performance even in situations with substantial power requirements.
7. Switching Power: 2500VA/300W
Similar to the YTK-112DM, the JZC-36F is a powerhouse in switching power. With a capacity of 2500VA for alternating current and 300W for direct current, it can efficiently handle significant power loads, making it suitable for demanding applications.
8. Mechanical Life: 1 x 10^7 Operations (OPS)
The JZC-36F, like its counterpart, is designed for durability, boasting a mechanical life rating of 1 x 10^7 operations. This ensures its ability to endure repeated use and maintain optimal functionality over an extended lifespan.
9. Electrical Life: 1 x 10^5 Operations (OPS)
The JZC-36F demonstrates impressive electrical life with a rating of 1 x 10^5 operations, reinforcing its ability to deliver consistent electrical performance even in challenging operational environments.
Choosing the Right Powerhouse for Your Needs
Whether you require the brute force of the YTK-112DM or the adaptable finesse of the JZC-36F, these relays are built to conquer demanding applications. When choosing your powerhouse, consider the following:
- Current and Voltage Requirements: Match the relay’s switching capacity (10A for JZC-36F, 20A for YTK-112DM) and voltage rating (250VAC for both) to your application’s needs.
- Configuration: For more complex switching operations, choose SPST-NO for simple on/off control or SPDT (JZC-36F only).
- Environmental Considerations: Opt for the sealed JZC-36F for harsh environments or the unsealed version for applications requiring superior heat dissipation.
The YTK-112DM and JZC-36F relays emerge as powerhouse solutions for demanding applications where precision and reliability are non-negotiable. With their compact designs, robust features, and impressive specifications, these relays are poised to meet the challenges of diverse industries.
Whether it’s the plugin prowess of the YTK-112DM or the compact dynamism of the JZC-36F, these relays offer a combination of mechanical and electrical resilience that sets them apart in electronic components.
As technology continues to advance, sourcing these high-quality relays becomes crucial to ensuring optimal performance in electronic systems. This is where WIN SOURCE comes into play as a reliable and trusted distributor.
WIN SOURCE offers top-notch components that facilitate access to the best-in-class solutions for electronics engineers and designers.
