* Question
What characteristics can be identified from the analysis of the heat dissipation function of a heat sink?
* Answer

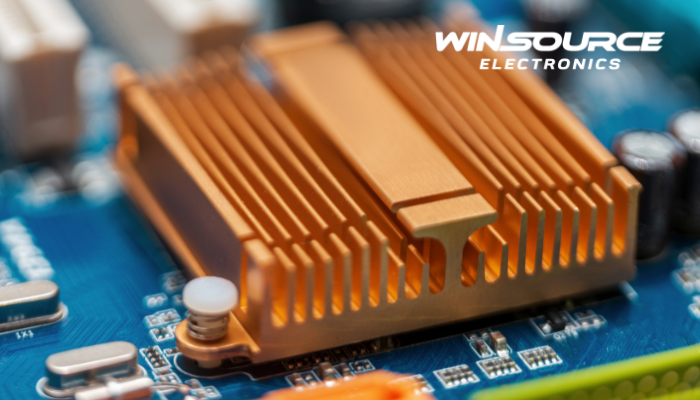

The heat sink is a critical component in electronic systems, designed to dissipate heat generated by semiconductors or power devices to maintain safe operating temperatures. By analyzing its heat dissipation function, several key characteristics can be identified that determine its thermal performance and design efficiency.
1. Thermal Conductivity
One of the most important characteristics is the material’s thermal conductivity (k).
Materials like aluminum and copper are commonly used because they conduct heat efficiently from the source to the fins and surrounding air.
High thermal conductivity ensures rapid heat transfer and uniform temperature distribution.
2. Surface Area and Geometry
The surface area directly affects heat dissipation efficiency.
Fins, ridges, or pins increase contact area with the air, allowing more heat to be transferred through convection.
Fin spacing, thickness, and orientation also influence airflow and overall cooling performance.
3. Convection Mechanism
Heat sinks work through natural or forced convection.
Natural convection relies on air buoyancy, while forced convection uses fans or blowers to enhance heat removal.
The type of convection determines the heat transfer coefficient and system cooling capacity.
4. Thermal Resistance (Rθ)
Defined as the temperature difference between the heat source and ambient air per unit of heat flow.
Lower thermal resistance indicates better heat dissipation performance.
The total thermal resistance includes contributions from the interface, base, and fin sections.
5. Material and Surface Treatment
Surface finishes like anodizing or black coating improve emissivity, allowing more heat to radiate away.
Material choices (aluminum for light weight, copper for higher performance) balance cost and thermal efficiency.
6. Airflow and Orientation Effects
The positioning of the heat sink relative to airflow impacts cooling efficiency.
Vertical fin orientation improves natural convection, while horizontal setups may reduce effectiveness unless airflow is forced.
Summary
From analyzing the heat dissipation function of a heat sink, the main characteristics identified are:
thermal conductivity, surface area and geometry, convection type, thermal resistance, material properties, and airflow behavior.
These factors together determine the cooling capability, reliability, and overall thermal management efficiency of electronic devices.
