* Question

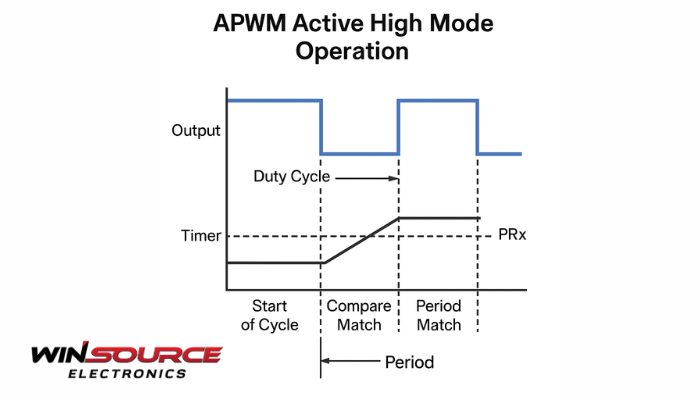

| How does the Auxiliary Pulse Width Modulation (APWM) mode operate when active high? |
* Answer
| CMP=0x00000000, output continuous period of low level (0% duty cycle); CMP=0x00000001, output high level for 1 cycle; CMP=0x00000002, output high level for 2 cycles; CMP=PERIOD,Except for one cycle (less than l00% duty cycle), the output is high; CMP=PERIOD 1, |
