* Question

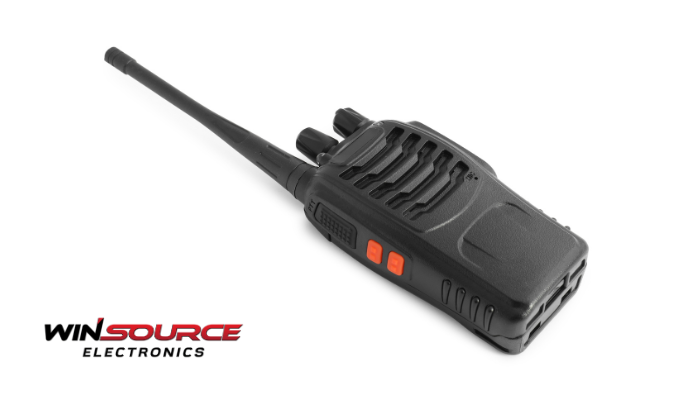

What are the main components of a walkie-talkie base station?
* Answer
A walkie-talkie (two-way radio) base station—often part of a larger trunking or conventional radio system—consists of several core modules that ensure reliable transmission, reception, control, and network connectivity. The main components include:
1. Transmitter (TX)
The transmitter generates and amplifies the RF signal that will be sent to portable or mobile radios.
Key elements include:
- RF power amplifier
- Modulator
- Frequency synthesizer
- Filtering and harmonic suppression
It ensures sufficient coverage and clear signal quality.
2. Receiver (RX)
The receiver captures weak incoming signals from walkie-talkies and converts them into usable audio/data.
Typical parts include:
- RF front-end
- Low-noise amplifier (LNA)
- Intermediate frequency (IF) stage
- Demodulator
- Audio processing circuits
High sensitivity and good selectivity are critical for minimizing interference.
3. Duplexer (or Antenna Switch)
A duplexer allows the base station to transmit and receive simultaneously through a single antenna while preventing the powerful TX signal from damaging the RX circuits.
Used mainly in full-duplex or repeater systems.
4. Controller / Baseband Processor
This unit manages:
- Channel selection
- Signaling and control protocols
- Encryption/decryption (if used)
- System timing
- Network interfaces (for digital systems)
Digital base stations may incorporate DSPs or embedded processors for vocoder, error correction, and protocol handling.
5. Power Supply / Backup Power System
Provides stable DC power to all modules.
Some base stations include:
- AC to DC conversion
- Battery backup or UPS
- Surge protection and power monitoring
Essential for ensuring continuous operation in critical communication systems.
6. Antenna System
The antenna and its associated components determine coverage performance:
- Omnidirectional or directional antenna
- Feed lines (coaxial cables, connectors)
- Lightning protection devices
- Tower or mounting structures
Proper placement and gain selection affect communication range and reliability.
7. Cooling and Physical Enclosure
Base stations often include:
- Fans or heat sinks
- Environmental protection (IP-sealing for outdoor units)
- EMI shielding
Ensures long-term stability under varying temperature and weather conditions.
Optional Components (Depending on System Type)
- Repeater module(for extending range)
- Network interface unit(for DMR/NXDN/P25 IP-based systems)
- GPS timing module(for synchronization in digital trunking networks)
- Voice logging or dispatch interface
- Encryption modules
Summary
A walkie-talkie base station typically consists of the transmitter, receiver, duplexer, controller, power supply, antenna system, and support hardware. These components work together to ensure stable, long-range, and high-quality communication within radio networks.
