* Question

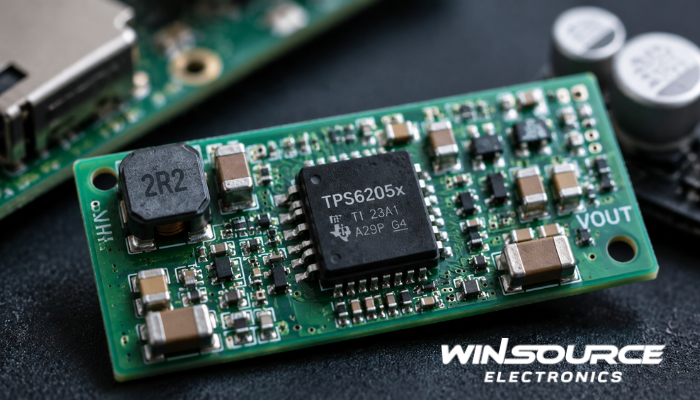

| What are the pin functions of the TPS6205×? |
* Answer
| EN: Enable, when it is low, it is off.FB: Feedback pin for fixed voltage output.GND, PGND: Ground pin.V1N: Voltage input pin.LBl, LB0: Low voltage input and output pins.PG: “Good” signal output pin.SW: Connect to the output inductor pin. |
