High Voltage Capacitor: Key Features and Benefits

* Question

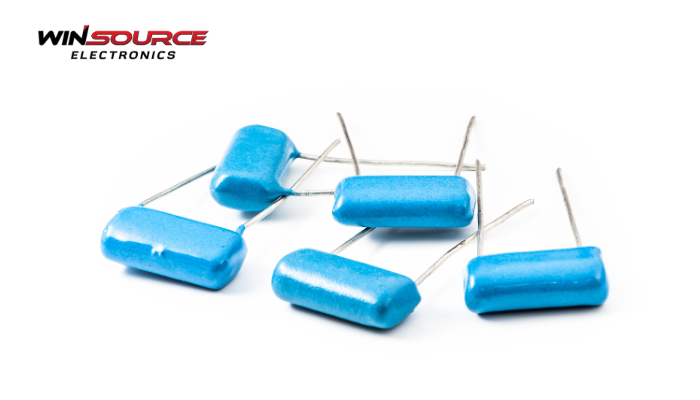

What is a high voltage capacitor?

* Answer

A high voltage capacitor is a type of capacitor specifically designed to operate safely and reliably at voltages significantly higher than those used in standard electronic circuits. These capacitors are engineered with specialized materials, insulation, and construction techniques to handle high electric fields without breaking down or failing.

Table of Contents

Key Characteristics:

Voltage Rating:

High voltage capacitors typically have voltage ratings ranging from hundreds to tens of thousands of volts (e.g., 500V, 5kV, 30kV or more), depending on the application.

Dielectric Materials:

Common dielectric materials include ceramic, polypropylene, mica, and oil-impregnated paper, chosen for their high dielectric strength and thermal stability.

Physical Construction:

These capacitors are built with thicker insulation, wider spacing between plates, and often encapsulated in protective resins or housings to prevent arcing and corona discharge.

Typical Applications:

Power Supply Systems: Used in high-voltage DC power supplies, switch-mode power supplies, and voltage multipliers.
Medical Equipment: Essential in devices like X-ray machines, MRI systems, and defibrillators, where high-voltage pulses are needed.
Industrial and Scientific Equipment: Found in laser systems, particle accelerators, and plasma generators.
Power Transmission and Distribution: Used in power factor correction, voltage regulation, and surge protectionin high-voltage substations.
RF and Microwave Systems: High-frequency high-voltage capacitors are used in RF amplifiers and transmitters.

Benefits:

Withstand High Electric Fieldswithout breakdown
Reliable Energy Storagein pulsed power systems
Long Operational Lifewith proper insulation and materials
Low Lossesat high voltages, especially in high-frequency designs

Safety Considerations:

Due to the large energy storage and high voltages involved, high voltage capacitors pose serious safety risks:

Risk of Electric Shock or Explosion
Proper Discharge Circuits Required
Strict Handling, Storage, and Testing Protocols

Conclusion:
A high voltage capacitor is a critical component in applications requiring stable energy storage and discharge at elevated voltage levels. Designed with specialized materials and insulation, these capacitors ensure safe operation in high-energy environments across industries such as power, medical, industrial, and telecommunications.
