* Question
What is a power MOSFET?
* Answer

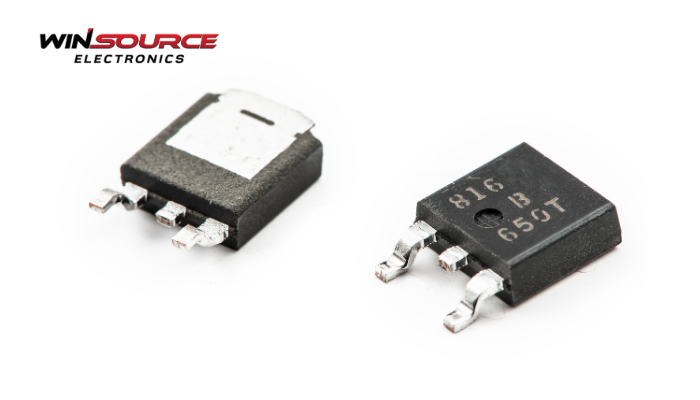

A power MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) is a type of transistor designed specifically to handle high current and voltage levels, making it ideal for power switching and amplification in electronic circuits. Unlike standard signal MOSFETs used in logic circuits, power MOSFETs are optimized for efficiency, low heat generation, and fast switching speeds under substantial electrical loads.
1. Basic Structure and Operating Principle
Power MOSFETs are voltage-controlled devices: a voltage applied to the gate terminal controls the flow of current between the drain and source terminals. The gate is insulated by a thin oxide layer, which draws virtually no current, allowing high-speed switching with minimal input power.
N-channel MOSFETs are the most commonly used in power applications due to lower ON-resistance.
P-channel MOSFETs are typically used in high-side switching but are less efficient at high currents.
2. Key Characteristics
Feature | Description |
Low On-Resistance (RDS(on)) | Minimizes conduction losses during ON state |
High Switching Speed | Suitable for high-frequency applications |
Thermal Efficiency | Many include large die areas or packages for heat dissipation |
Voltage Ratings | Typically range from 20 V to several hundred volts |
Current Ratings | Can handle tens to hundreds of amps, depending on design |
3. Common Applications
Application Area | Role of Power MOSFET |
DC-DC Converters | Switches input rapidly to regulate output voltage |
Motor Drives | Controls current flow to motors in robotics, EVs, HVAC, etc. |
Battery Management | Manages charging/discharging cycles |
Inverters and UPS | Converts DC to AC in solar and backup power systems |
Switch-Mode Power Supplies (SMPS) | Handles high-speed switching for efficient energy transfer |
4. Advantages Over Other Power Devices
Higher Efficiency at low voltages compared to bipolar junction transistors (BJTs)
Simpler Drive Requirements (voltage-driven rather than current-driven)
Fast Response Time suitable for high-speed PWM and digital switching
5. Limitations
Susceptible to Overvoltage: Requires protection like clamping diodes or snubbers
Thermal Constraints: Must be managed with proper heat sinking or packaging
Body Diode Losses: Internal diode may have high reverse recovery losses in some cases
In summary, a power MOSFET is a high-performance semiconductor switch essential in modern power electronics. It offers fast, efficient control over high power levels, making it a foundational component in everything from smartphones and servers to electric vehicles and industrial machinery.
