What is a reader in electronic？

* Question

What is a reader in electronic？

* Answer

In the context of radio frequency identification (RFID) and electronic tags, a reader (also called a RFID reader or RFID transceiver) is a device that is responsible for reading and, in some cases, writing data to RFID tags (electronic tags). These readers use radio frequency signals to communicate with RFID tags, extracting or updating the information stored on the tags.

 Key Features of RFID Readers:

1. Reading and Writing:

   – Read-only: Some RFID tags are designed to only allow data to be read, not written to (non-rewritable).

   – Read/Write: Many RFID tags are rewritable, and the reader can update or modify the data stored on the tag.

2. Interaction with Upper Layer Software:

   – The RFID reader typically interacts with upper layer software or an application to carry out tasks such as reading data from the tag, processing it, and uploading the results or summaries to a central system.

   – This software communicates with the reader to execute operations (e.g., tag read/write commands, data filtering, etc.) and to upload the collected data to a backend system, such as a database.

3. Communication:

   – The reader sends out radio frequency signals to activate the RFID tags, causing them to respond with the data stored on the tag.

   – The RFID reader communicates with the tag either through active or passive RF communication:

     – Passive RFID tags do not have a battery and rely on the reader’s signal for power.

     – Active RFID tags have an internal battery, allowing them to transmit signals over longer distances.

 Typical Components of RFID Reader Systems:

1. Reader (Transceiver): The device that emits radio waves to communicate with the RFID tags and receives the response from the tags.
2. Antenna: Used by the reader to transmit and receive radio signals to/from RFID tags.
3. Software Interface: The software that interacts with the RFID reader to control its operations (e.g., trigger reading/writing commands) and manage the data processing (e.g., interpreting the tag data).
4. Programmers: In the context of RFID, programmers are devices or software tools that can modify or configure the behavior of the RFID reader or write specific data to RFID tags.

 Key Functions of an RFID Reader:

1. Data Collection: The reader captures the unique identifier (UID) or other data stored in the RFID tag’s memory.
2. Tag Identification: It identifies which specific tag is being read or written based on its unique ID or other characteristics stored on the tag.
3. Writing Data: In systems that support rewritable tags, the reader can update the tag’s memory, changing or adding information (e.g., status, inventory data, or access control details).
4. Data Processing and Uploading: The reader often interacts with backend systems, uploading data to a central database, or acting as a gateway for further data processing.

 Typical RFID Reader Configurations:

– Fixed Readers: Stationary readers typically installed at specific locations (e.g., at gates, doors, or docks) to monitor RFID tags as they pass by.

– Handheld Readers: Portable devices used for mobile reading and writing of RFID tags. These are commonly used in warehouse management and inventory systems.

 Development of RFID Technology:

With the development of RFID technology, the design of RFID readers has evolved to meet diverse application needs. This includes:

– Longer range for active RFID tags.

– Higher read/write speed for real-time data capture.

– Support for different frequencies (low, high, ultra-high frequency) to suit various application environments.

– Integration with various sensors (e.g., temperature or motion sensors) for specialized applications.

– Software and communication protocols that allow the reader to work seamlessly with inventory management systems, asset tracking solutions, or access control systems.

 Examples of Common Applications:

1. Inventory Management: RFID readers track products, assets, and items in warehouses or retail stores by reading the tags attached to these items.

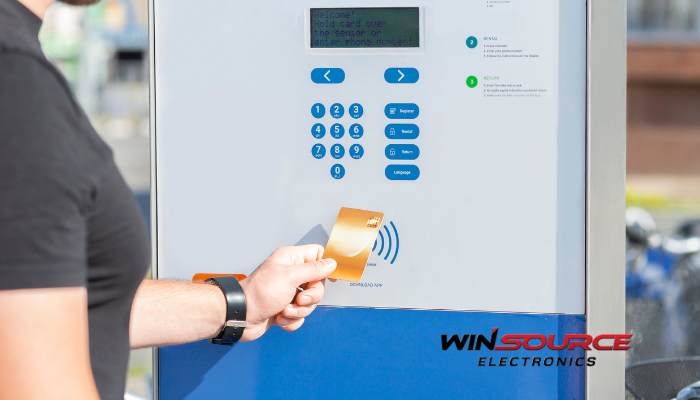

2. Access Control: RFID readers at entry points read access cards (with RFID tags) and grant or deny access based on the stored data.
3. Asset Tracking: Equipment or machinery can be tagged with RFID tags, and readers at fixed locations track the movement and status of the assets.
4. Supply Chain Management: RFID tags are used to track the movement of goods through the supply chain, and readers are used at checkpoints to update the status and location of goods.

 Summary:

An RFID reader (or RF tag reader) is a device used to read and, in some cases, write data to RFID tags (electronic tags). It operates by sending radio frequency signals to activate the tags and communicate with them. The reader, along with associated software, allows for the collection, processing, and uploading of data, enabling applications like inventory management, asset tracking, and access control. The design of RFID readers depends on the specific requirements of the RFID tags being used and the application for which they are intended.

RFID readers are fundamental components of RFID systems, allowing the interaction between the electronic tags and the software that manages the data for various practical applications.
