* Question
What is included in the data link layer specification?
* Answer
The Data Link Layer, the second layer in the OSI (Open Systems Interconnection) model, is responsible for reliable data transfer across a physical link. It serves as the bridge between the raw bit transmission of the Physical Layer and the structured communication provided by the Network Layer.

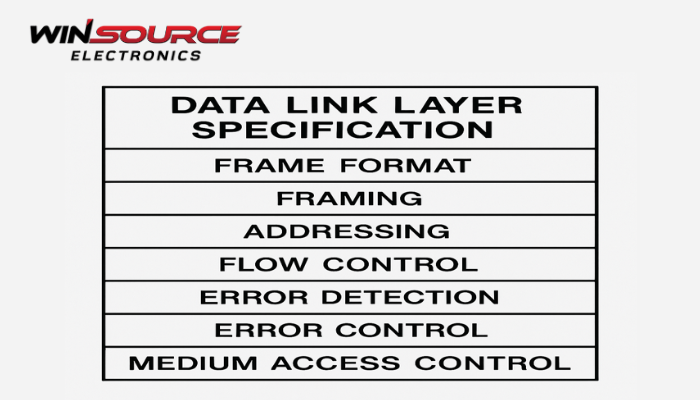

A complete data link layer specification includes several essential components that define how devices recognize, format, control, and verify the transmission of frames over a physical medium.
1. Framing
Definition: Framing refers to the process of breaking down the raw bit stream into manageable, identifiable data units called frames.
Specification Includes:
Frame structure (header, payload, trailer)
Start and end delimiters
Frame length fields
Purpose: Ensures the receiver can distinguish individual messages and maintain synchronization.
2. Addressing
Definition: Mechanism to uniquely identify source and destination nodes within a local network segment.
Specification Includes:
MAC (Media Access Control) addresses in Ethernet
Logical Link Control (LLC) addressing schemes
Purpose: Enables data delivery to the correct device on a shared medium.
3. Error Detection and Handling
Definition: Techniques for detecting (and sometimes correcting) errors introduced during transmission.
Specification Includes:
Checksum or CRC (Cyclic Redundancy Check)
Frame Check Sequence (FCS)
Error handling procedures (discarding, requesting retransmission)
Purpose: Increases reliability over noisy or error-prone physical links.
4. Flow Control
Definition: A method to ensure that a sender does not overwhelm a receiver with too much data at once.
Specification Includes:
Stop-and-wait protocol
Sliding window mechanism
Purpose: Prevents buffer overflow and data loss at the receiver side.
5. Access Control (MAC – Media Access Control)
Definition: Rules for determining how multiple devices share access to the communication medium.
Specification Includes:
CSMA/CD (Carrier Sense Multiple Access with Collision Detection) – e.g., Ethernet
CSMA/CA (Collision Avoidance) – e.g., Wi-Fi
Token passing – e.g., Token Ring networks
Purpose: Coordinates medium access to avoid collisions and ensure fair transmission.
6. Link Management and Establishment
Definition: Procedures to initiate, maintain, and terminate a data link connection.
Specification Includes:
Link initialization (handshake protocols)
Connection setup and teardown
Frame sequencing for orderly delivery
Purpose: Enables synchronized and state-aware communication between peers.
In Summary:
A complete data link layer specification outlines how data frames are constructed, addressed, checked, managed, and transmitted over a physical link. It incorporates mechanisms for framing, addressing, error detection, flow control, access control, and link management, making it a critical foundation for reliable and efficient communication in both local area networks (LANs) and wide area networks (WANs).
