* Question
What is magnetic permeability?
* Answer
Magnetic permeability is a fundamental physical property that describes how easily a material can become magnetized or how well it can support the formation of a magnetic field within itself.
1. Definition
Magnetic permeability, denoted by the symbol μ, is defined as the ratio of the magnetic flux density (B) to the magnetic field strength (H):
B=μH
Where:
B is the magnetic flux density (in teslas, T)
H is the magnetic field strength (in amperes per meter, A/m)
μ is the permeability of the material (in henries per meter, H/m)
2. Types of Permeability
Absolute Permeability (μ): The total permeability of a material, including the effect of vacuum.
Vacuum Permeability (μ₀): Also called the permeability of free space, a physical constant:
μ0=4π×10−7 H/m
Relative Permeability (μᵣ): The ratio of a material’s permeability to that of free space:
μr=μ/μ0
3. Material Classification Based on Permeability
Material Type | Relative Permeability (μᵣ) | Characteristics |
Diamagnetic | Slightly less than 1 | Weakly repelled by magnetic fields |
Paramagnetic | Slightly more than 1 | Weakly attracted by magnetic fields |
Ferromagnetic | Much greater than 1 (up to 10⁵ or more) | Strongly attracted and can retain magnetization |
4. Applications
Transformers and Inductors: High-permeability materials enhance magnetic coupling and inductance.
Magnetic Shielding: Materials like mu-metal with high μ are used to block or redirect magnetic fields.
Electric Motors and Generators: Cores are made from ferromagnetic materials to improve magnetic efficiency.
Sensors and Magnetic Circuits: Precise control of field response depends on the permeability of the medium.
5. Important Considerations

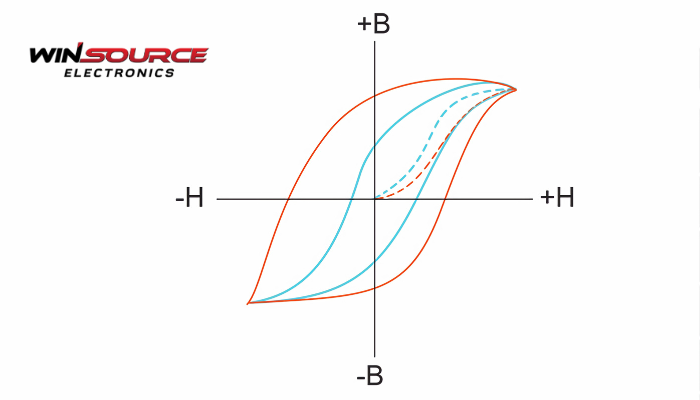

Nonlinearity: In ferromagnetic materials, permeability is not constant and changes with field strength.
Temperature Dependence: Permeability can change with temperature, especially near a material’s Curie point.
Frequency Effects: At high frequencies, effective permeability may decrease due to eddy currents and skin effect.
Summary:
Magnetic permeability determines how well a material can carry magnetic lines of force. It is essential in designing and analyzing electromagnetic devices such as inductors, transformers, motors, and magnetic shielding systems.
