As automotive electronics and industrial control systems continue to evolve rapidly, engineers are shifting their attention from mere parameter matching to more comprehensive considerations. These include system adaptability, long-term reliability, packaging flexibility, and BOM optimization. IGBT (Insulated Gate Bipolar Transistor), as one of the mainstream high-voltage power devices, is redefining the balance between performance and practicality—particularly in mid-voltage, high-frequency, inductive load control—through innovations in materials, structure miniaturization, and integrated protection.NGD8201ANT4G, a representative N-channel IGBT, stands out with its combination of high voltage tolerance, fast switching speed, and compact packaging.
It demonstrates high engineering maturity in applications such as automotive ignition systems, inductive load switching, and electromagnetic control. This article provides a system-level analysis of its performance characteristics, technical advantages, key application scenarios, and selection value.
1. Core Capabilities of NGD8201ANT4G: A “Structural Balancer” for Mid-Voltage Inductive Control

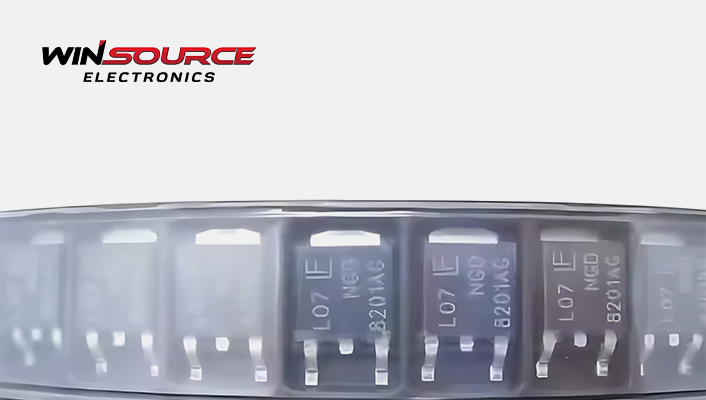

NGD8201ANT4G is a mid-voltage N-channel IGBT that features a TO-252 (DPAK) package. It offers a well-balanced combination of electrical and thermal performance, making it ideal for embedded platforms with space constraints and high power density requirements.
Key Electrical Specifications:
- Collector-Emitter Voltage (V<sub>CES</sub>): 400V to 440V — suitable for mid-voltage drive control
- Continuous Collector Current (I<sub>C</sub>): 20A — supports inductive and pulsed load switching
- Saturation Voltage (V<sub>CE(on)</sub>): Typical 1.3V @ 10A — reduces conduction losses
- Maximum Power Dissipation (P<sub>D</sub>): 125W — ideal for moderate continuous switching scenarios
- Turn-Off Delay Time (t<sub>d(off)</sub>): ~5µs — enables high-speed response
- Integrated ESD and Clamping Protection— enhances system-level robustness
- Junction Temperature Range: -55°C to +175°C — compliant with automotive-grade conditions
- Package: TO-252 (DPAK) — supports automated placement and dense layout
This specification set enables a balanced triad of voltage margin, thermal optimization, and switching speed—making NGD8201ANT4G a reliable mid-voltage IGBT solution.
2. Product Advantages: More Than a Switch—A System-Grade Driver
NGD8201ANT4G delivers more than basic switching functionality. Its performance translates into concrete engineering benefits at the system level:
High Voltage Endurance with Fast Switching: With up to 440V voltage rating and 5µs switching response, it ensures stability in frequent inductive switching while minimizing tail current and reverse spikes.
Low Conduction Loss and Effective Thermal Spreading: The low V<sub>CE(on)</sub> helps reduce heat generation. The DPAK package supports efficient heat dissipation when paired with optimized PCB copper layers.
Compact Structure for Modular and Distributed Architecture: Its small footprint suits space-limited areas such as automotive ECUs, branch controllers, and embedded power layers. This improves system integration density without sacrificing power capacity.
3. In-Depth Applications: Five Key System-Level Scenarios
Automotive Ignition Systems
Used as a primary coil driver, NGD8201ANT4G ensures fast interruption of primary current and reliable triggering of high-voltage discharge. Its electrical performance supports consistent ignition under high-speed engine cycles, reducing arc-related energy loss.
Fuel Injection Control Modules
Working alongside PWM controllers, this device enables precise timing and quantity control of fuel injection. The result is improved fuel efficiency and lower emissions in combustion engines.
Solid-State Relay (SSR) Replacement
Compared to mechanical relays, NGD8201ANT4G allows contactless high-frequency switching. It’s ideal for driving electromagnetic valves, coils, and actuators, delivering longer system lifespan and faster response times.
Embedded Distributed Power Control Units
As automotive subsystems such as seats, HVAC, and mirrors become more electronically controlled, distributed ECUs increasingly adopt compact IGBT solutions. NGD8201ANT4G’s thermal and mechanical design fits these micro-control environments well.
Industrial Inverters and Mid-Frequency Power Supplies
This device can serve as a main switch or rectifier in frequency conversion, UPS systems, and motor drives. In mid-frequency energy processing, it achieves a balance between stability and efficiency.
4. Selection Advice and System Compatibility
NGD8201ANT4G is an engineering-optimized mid-voltage IGBT ideal for systems requiring a balance of conduction efficiency, switching speed, and compact layout.
Recommended Use Cases:
- Automotive electronics (ignition, injection, actuator drivers)
- Industrial control modules (coil or valve control)
- Mid-frequency power conversion (e.g., embedded inverters)
- High-EMC environments with inductive loads
- Projects replacing MOSFETs to improve thermal and EMC performance
Design Considerations:
- Not ideal for >100kHz high-frequency or soft-switching circuits
- For ultra-fast switching or sub-60V drive, consider SiC or MOSFET alternatives
- Despite compact size, ensure adequate PCB-level thermal management to avoid heat buildup
NGD8201ANT4G strikes a practical balance across key performance factors—voltage endurance, switching speed, thermal stability, and packaging size. It is well-suited for inductive switching, high-voltage control, and space-constrained applications.
For automotive, industrial, and distributed electronic systems, NGD8201ANT4G is more than a component—it’s a platform-compatible solution with solid BOM fit, integration flexibility, and mature reliability.
WIN SOURCE, as a global electronic component supplier, offers consistent stock, technical support, and alternative recommendations for NGD8201ANT4G. This helps engineering teams accelerate development while ensuring system stability and supply continuity.
