1. Introduction: Why Classic Floating-Point DSPs Still Matter
In today’s embedded system design, heterogeneous multicore architectures and high-performance general-purpose processors are becoming more common. They dominate many consumer and enterprise applications. However, in fields like industrial automation, radar signal processing, professional audio, and medical instrumentation, dedicated DSPs still hold a unique advantage.

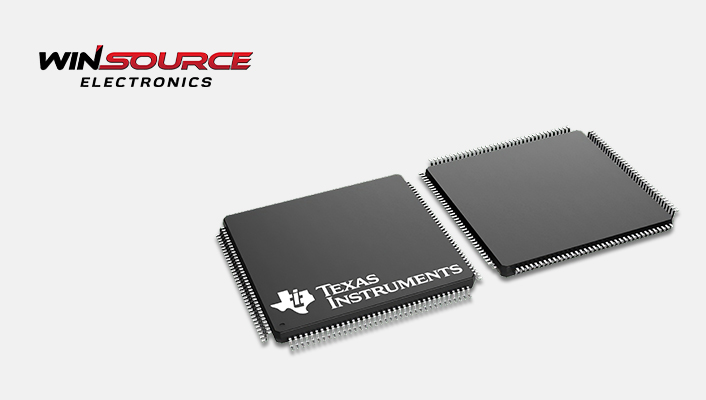

The TMS320VC33PGE120, a classic floating-point DSP from Texas Instruments, continues to stand out. It offers high numerical precision and strong computational performance. Developers also value its robust stability and well-established software ecosystem. Despite the rise of newer platforms, this chip remains in active use across thousands of industrial and research systems.
In applications that demand a wide dynamic range and real-time responsiveness, the VC33 has proven its worth. It serves as a dependable processing core, capable of handling signal-intensive tasks without compromise.
2. Architecture and Technical Highlights
The TMS320VC33PGE120 is based on TI’s C3x architecture. It follows the IEEE 754 standard for 32-bit floating-point representation. This design helps eliminate issues common to fixed-point DSPs, such as scaling, overflow, and rounding errors. Developers benefit from simpler code, more stable algorithms, and easier long-term maintenance.
Running at 120 MHz, the VC33 includes a powerful arithmetic unit. It performs single-cycle multiplications and dual-cycle MAC (multiply-accumulate) operations. These features make it well-suited for compute-intensive tasks like high-speed FIR filters, FFT algorithms, and matrix multiplications.
The chip includes independent program and data buses, which allows simultaneous instruction fetch and data access. Its three-port memory system supports access to two memory blocks and one register in each clock cycle. This structure boosts pipeline throughput and overall execution efficiency.
Externally, the VC33 supports up to 16 MB of linear addressable memory. It works seamlessly with common SRAMs, EPROMs, and external data acquisition peripherals. With six DMA channels, it handles high-speed data transfers in the background, without interrupting the processor. This is essential for real-time applications that rely on continuous data streams.
The device also integrates a robust set of industrial-grade control features. These include 15 maskable interrupts, programmable wait states, and bus arbitration logic. It is built to operate across industrial temperature ranges, which makes it suitable for harsh environments. Whether facing electrical noise, extreme temperature swings, or long-duration workloads, the VC33 consistently delivers stable, reliable performance.
3. Application Scenarios
In industrial automation, the TMS320VC33PGE120 often acts as the central processor for high-speed closed-loop control. Its floating-point precision boosts control accuracy. It responds quickly in multi-axis coordination, real-time speed feedback, and sensor data filtering. Engineers rely on it for tasks like position control, error compensation, and real-time path calculations. You’ll find it at the heart of industrial robots, CNC machines, and automated production lines.
In radar and sonar systems, the VC33 excels in signal processing. Its floating-point architecture and parallel data paths handle waveform analysis, target detection, and signal classification with ease. When paired with fast ADC modules, it supports complete acquisition-to-processing pipelines. The chip performs real-time FFTs and classification logic efficiently. These features make it ideal for tactical radar, maritime sonar, and underwater communication — where high throughput and low power draw are critical.
In professional audio and DSP applications, the VC33 is a proven performer. It drives equalizers, reverb units, and 3D audio engines. The chip processes multi-band filters, spectral shaping, stereo widening, delay compensation, and dynamic range control. Thanks to its floating-point core, it preserves audio detail and avoids truncation errors. This makes it a go-to solution for high-fidelity systems where clean signal quality matters.
Medical systems also benefit from the VC33’s power. It handles real-time filtering, pattern detection, and feature extraction. The chip supports EEG analysis, ultrasound processing, and CT reconstruction. With low power usage and high numerical precision, it fits well in portable diagnostic devices and remote monitoring tools. It delivers accurate, fast processing in space-constrained environments — without sacrificing performance.
4. Development Ecosystem and Toolchain
Despite being based on an older architecture, the TMS320VC33 enjoys a complete development ecosystem and ongoing toolchain support. Texas Instruments provides Code Composer Studio (CCS), a robust IDE that supports C/C++ and assembly programming, integrated with debuggers, optimizers, and performance analysis tools. Developers can also leverage DSP/BIOS for real-time task scheduling and resource management to enhance overall system responsiveness.
For model-based development, VC33 is compatible with MATLAB/Simulink toolchains, enabling seamless transitions from system modeling to automatic code generation—a major advantage in research and algorithm validation projects. The chip also supports JTAG debugging interfaces for convenient field testing, variable tracking, and system profiling. Additionally, TI and third-party ecosystems offer evaluation boards, application notes, code libraries, and example projects to accelerate deployment.
5. Lifecycle, Alternatives, and Procurement Guidance
While TMS320VC33PGE120 is no longer recommended for new designs, it remains widely used in existing systems—particularly in industrial settings that demand long-term stability and support. TI officially classifies this device as “Not Recommended for New Design” (NRND), making it ideal for system maintenance, drop-in replacements, and supply chain contingency planning.
For new designs or higher-performance alternatives, engineers are encouraged to explore options such as the TMS320C6713B (a high-performance floating-point DSP based on the C6000 architecture), the AM57x series (high-compute SoCs integrating ARM cores with DSP coprocessors), or the Sitara AM2x family (industrial-grade SoCs with dedicated signal processing accelerators). These modern platforms provide enhanced interface support, increased throughput, and updated development tools.
Secure Sourcing for Legacy Components
Because many VC33 variants are no longer in mass production, sourcing becomes critical. Engineers must rely on distributors who can ensure authenticity, traceability, and availability. Win Source, as a trusted global distributor, offers verified stock, RoHS-compliant sourcing, and expert support for legacy and hard-to-find components like the TMS320VC33PGE120.
Beyond availability, Win Source helps customers with replacement strategies, quality validation, and supply risk mitigation. These services help engineering teams reduce downtime, avoid redesigns, and maintain project continuity—even in aging or long-life-cycle systems.
Proven Design Philosophy for High-Reliability Systems
Although the TMS320VC33PGE120 doesn’t represent the cutting edge of DSP technology, it still delivers real value. Its architecture balances precision, efficiency, and stability, which remains critical in domains like industrial automation, communications infrastructure, and medical equipment.
For many active systems, robustness and compatibility matter more than raw speed. In that context, the VC33 continues to justify its place as a practical and dependable embedded solution.
Whether serving as the real-time computational engine in data acquisition chains or functioning as the core logic in control systems, TMS320VC33PGE120 provides dependable performance to ensure smooth and stable operation. As it moves into its sustained support phase, the key concern becomes how to source and maintain these “engineering-critical” components reliably and efficiently.
WIN SOURCE, as a globally trusted distributor of electronic components, is dedicated to helping customers acquire legacy and long-tail parts such as the TMS320VC33PGE120. With tailored procurement solutions, quality assurance, and technical replacement recommendations, Win Source empowers clients to transition systems safely and sustain operations without disruption.
In a landscape where engineering precision and supply chain collaboration are equally critical, classic DSPs like the TMS320VC33PGE120 are not just technically relevant—they’re strategically essential. Win Source stands ready to ensure their value continues to reach the engineers and systems that still depend on them.
