  • Typical Applications of STM32F103CBT6 in Medium-to-Low Power Scenarios

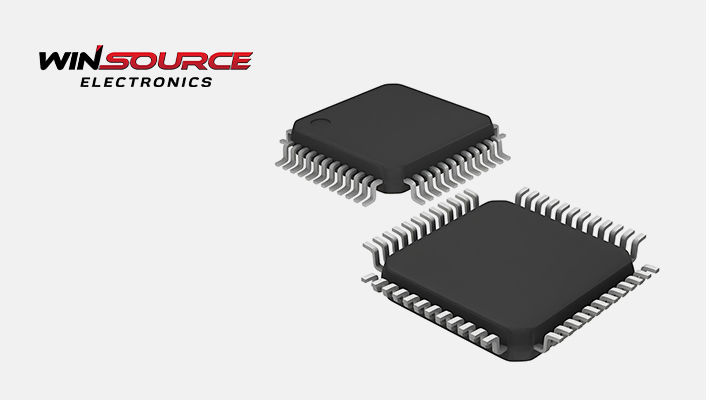

    STMicroelectronics introduced the STM32F103CBT6 as a classic 32-bit microcontroller (MCU) built on the ARM Cortex-M3 core. Engineers recognize it for its well-balanced performance-to-power ratio, abundant on-chip resources, and strong ecosystem compatibility. These qualities have made it a popular choice in medium-to-low power embedded systems across industries.

    Designers often select this MCU to meet demanding requirements in power efficiency, connectivity, and computing capability. In this article, we explore its low-power design features, examine practical deployment strategies, and highlight its advantages in real-world applications. We also explain why the STM32F103CBT6 continues to offer strong engineering value, even as embedded systems evolve.

    1. Overview of Low Power Capabilities

    Despite its long market presence, the STM32F103CBT6 continues to show strong adaptability across multiple application dimensions. It is especially suitable for systems that require performance, interface richness, and reliability under power-constrained conditions.

    Balanced Performance

    STMicroelectronics built the STM32F103CBT6 on a 32-bit ARM Cortex-M3 core. The chip runs at clock speeds of up to 72 MHz. It supports the Thumb-2 instruction set, integrates a single-cycle multiplier, and includes a Nested Vector Interrupt Controller (NVIC). These features allow the MCU to maintain stable performance in control-intensive applications.

    Rich On-Chip Resources

    The chip integrates 128KB of Flash memory and 20KB of SRAM, which support mid-sized firmware applications. It includes two 12-bit ADCs with 18 channels, enabling engineers to perform parallel analog signal acquisition. With up to 7 DMA channels, developers can offload repetitive data transfers from the CPU and enhance system responsiveness.

    Versatile Peripheral Integration

    Engineers can take advantage of three general-purpose timers and one advanced PWM timer, making the chip well-suited for motor control and precision timing applications. The STM32F103CBT6 also offers 2 SPI, 3 USART, 2 I²C, and 1 CAN controller, allowing designers to build complex multi-protocol communication systems, including master-slave networks and relay-node architectures.

    Power Modes and Wake-Up Mechanisms

    Developers can choose from Sleep, Stop, and Standby modes to optimize power consumption. In Standby Mode, they can lower the current draw to just 2 μA. The integrated RTC allows the system to wake up periodically based on a defined schedule. Engineers can also use the fast wake-up capability to ensure the system responds quickly in real-time scenarios.

    Packaging and Power Compatibility

    STMicroelectronics delivers this chip in a compact LQFP-48 package (7mm × 7mm). Engineers can integrate it into tight PCB layouts and support automated assembly with ease. With a 2.0V to 3.6V supply range, the chip works well with lithium batteries, LDOs, and DC/DC power designs, giving developers flexibility in system-level power planning.

    Environmental Robustness

    Engineers can deploy the STM32F103CBT6 in demanding environments. The chip operates reliably across an –40°C to +85°C temperature range and offers strong EMI immunity. These qualities make it ideal for industrial automation, transportation control systems, sensor networks, and energy monitoring platforms.

    2. Application Scenarios

    Powering Portable and Battery-Based Devices

    The STM32F103CBT6 frequently powers battery-operated systems such as handheld instruments, environmental monitoring terminals, and mobile data collectors. These devices often run on lithium or dry cell batteries, so developers must carefully balance power efficiency with processing and interface needs.

    To minimize processor activity, engineers configure ADCs, DMA, and timers to handle off-core signal acquisition. They use Stop Mode to place LCD or LED displays into sleep, significantly reducing display-related power draw. The integrated RTC enables periodic wake-ups, helping systems operate for long periods with minimal energy consumption.

    In portable water quality testers, developers use the chip to capture conductivity and temperature data. During idle periods, they transition the system into a low-power state, allowing months-long operation on a single battery.

    Enabling Low-Power Wireless Transmission Nodes

    In LoRa, Bluetooth, or other wireless sensor nodes, developers implement a “long standby + short wake-up” strategy. They use low-power wake-up pins to restore the chip from Standby Mode. The STM32F103CBT6 can then immediately activate wireless modules such as SX1278 or HC-12 through SPI or UART interfaces.

    After data transmission, engineers put the system back into deep sleep, disabling unused peripherals to reduce power waste. This approach allows the MCU to maintain high responsiveness without sacrificing energy efficiency — an ideal balance for industrial IoT deployments that don’t require extreme ultra-low-power features.

    Serving Industrial Signal Monitoring Systems

    The chip also performs well in industrial signal monitoring modules. Typical examples include motor condition monitoring, PLC front-end acquisition, and railway signaling nodes. These systems require reliable, long-term operation with real-time data collection and precise timing.

    Engineers rely on the chip’s ability to retain critical data using on-chip Flash and independent SRAM, even during power-down events. They configure its multi-level interrupt system and timed wake-up functions to ensure stable multitasking and responsive behavior. The RTC continues to run through Stop and Standby modes, keeping tasks and timestamps accurate without system wake-up.

    A Practical Choice for Balanced Power and Performance

    The STM32F103CBT6 gives developers a balanced solution. It combines moderate clock speeds, rich on-chip resources, and smart power control mechanisms. It doesn’t aim for the absolute lowest power consumption. Instead, it offers a well-rounded profile suited for systems that need both computational flexibility and manageable power budgets.

    From portable terminals to industrial controllers and wireless sensor networks, this chip continues to deliver reliability, adaptability, and efficiency in power-conscious embedded designs.

    3. Hardware and Power Optimisation Strategies

    Practical Strategies for Power Optimization

    To maximize power efficiency in real-world projects, engineers must optimize every layer — from power supply design to peripheral management and embedded software.

    Start by choosing a high-efficiency DC-DC converter to reduce overall power loss. Add wake-up capacitors to stabilize power transitions between modes. Use a 32.768 kHz low-power crystal oscillator as the RTC clock source to avoid unnecessary activation of the main system clock.

    Engineers should configure all unused GPIOs as analog inputs or enable pull-down resistors to prevent floating states and leakage currents. At the software level, they should build a periodic task scheduler rather than rely on polling. By inserting Sleep or Stop modes at the right moments, they can keep the processor idle when appropriate.

    When working with ADC, SPI, or UART, developers should disable the clock sources when peripherals are inactive. They should also turn off background tasks that silently consume energy. Tools like STM32CubeMX allow developers to model power paths, simulate consumption, and align hardware with software for optimal low-power performance.

    Enduring Value in Embedded Design

    Thanks to its balanced resource configuration, scalable power control, and mature development ecosystem, the STM32F103CBT6 remains a trusted choice for medium-to-low power embedded applications. While it may not achieve the absolute lowest standby current, it delivers a smart engineering balance between performance, integration, and energy efficiency.

    Developers continue to use this chip across diverse scenarios — including industrial controllers, portable terminals, and IoT edge nodes. It offers strong stability, interface versatility, and long-term maintainability. As embedded design trends move toward higher precision and lower energy footprints, the STM32F103CBT6 still provides practical, future-ready value. For engineers seeking both reliable compute capability and reasonable power budgets, this chip remains a dependable and forward-compatible solution.

    As a deep-rooted component distributor in the industry, WIN SOURCE provides stable stock supply of STM32F103CBT6, proven device quality and stable delivery capability, which helps engineering teams to shorten the development cycle, cope with material fluctuations, and obtain key support between fast delivery and project implementation.
