In modern embedded systems and highly integrated electronic product designs, connector performance, packaging, and mechanical structure are no longer isolated concerns—they are integral components throughout the product lifecycle. As a key element for data exchange and removable storage, the mechanical design, electrical contact characteristics, and assembly compatibility of a microSD card connector directly impact product stability, manufacturing efficiency, and cost control.

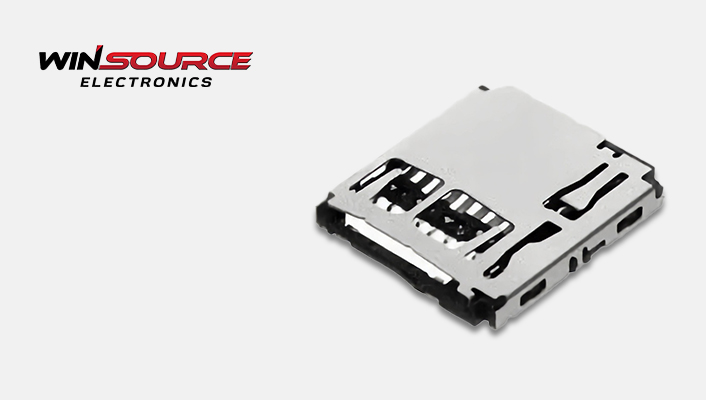

SCHA4B0419 is a Push-Push microSD card connector featuring a compact form factor, excellent electrical performance, high reliability, and process-friendly characteristics. It is widely used in mobile devices, industrial recorders, smart terminals, and IoT modules. The following analysis explores four critical technical aspects to serve as a comprehensive engineering reference for component selection.
1. Form Factor: Compact Packaging for High-Density Systems
With dimensions of 15.6mm × 14.1mm × 1.85mm (L×W×H), the SCHA4B0419 employs a standard 0.50mm pitch 8-pin layout. Its space-efficient right-angle side-entry design allows edge mounting on PCBs, optimizing space usage and mechanical safety. Fully compliant with JEDEC packaging standards, it integrates seamlessly with BGA and QFN-based main controllers to form stable, efficient subsystems.
Ideal for wearables, portable terminals, and miniaturized communication modules, the connector offers high packaging flexibility and routing freedom. Its robust EMI resistance further enhances performance in high-density PCB layouts.
2. Insertion Mechanism & Mechanical Durability: Balancing Structural Stability and User Experience
This connector features a bi-directional Push-Push mechanism, facilitating standard microSD card insertion and ejection. It supports a mechanical lifespan of at least 5,000 cycles (typical up to 10,000), with insertion force controlled between 20N and 35N—ensuring smooth and consistent operation.
The contact structure uses gold-plated spring terminals over a nickel base (0.2–0.3μm gold thickness) combined with a high-strength PPS or LCP housing. This design provides excellent wear resistance and long-term durability, minimizing contact degradation and preventing failures from fatigue, corrosion, or frequent usage.
3. Electrical Performance: Ensuring Signal Integrity and Insulation Reliability for High-Speed Interfaces
SCHA4B0419 supports SDIO, SPI, and UHS-I protocols with 8 signal contacts. It is rated for 100V AC and 0.5A current. The contact resistance does not exceed 100mΩ (typically <30mΩ), and insulation resistance reaches 1 GΩ at 500V DC. Meanwell, it also withstands 500V AC for one minute, meeting stringent safety requirements.
And Optimized for medium to high-speed data transfer, the connector’s loop layout exhibits excellent RF behavior—reflection loss (S11) is below -18dB at 500MHz, while insertion loss (S21) remains within -1.2dB. This ensures robust performance in multi-bus systems by minimizing signal reflection and interference, thereby maintaining interface stability and data consistency.
4. Packaging & Process Compatibility: Enabling Automated Production and Yield Consistency
The SCHA4B0419 adopts a standard SMD (Surface Mount Device) design. It uses Tape & Reel packaging, which works seamlessly with high-speed pick-and-place equipment. Systems like Panasonic NPM and ASM SIPLACE handle it with ease.The connector is built from high-temperature LCP. It withstands reflow soldering up to 260°C for up to 60 seconds. This makes it fully compatible with lead-free soldering processes.Its staggered short-pin layout improves soldering reliability. It helps avoid cold joints and solder bridging. Placement becomes more accurate, and reflow results stay consistent.
Unlike traditional DIP connectors, this SMD version removes the need for PCB through-holes. Engineers no longer require dual-side soldering. As a result, SMT line efficiency improves, and production costs drop.
The SCHA4B0419 reflects key trends in microSD connector design. It supports miniaturization, offers strong structural stability, ensures solid electrical performance, and fits into modern manufacturing flows.You can use it in new designs. You can also treat it as a drop-in replacement. This helps mitigate risks from EOL components or lengthy requalification procedures.
WIN SOURCE supplies the SCHA4B0419 along with equivalent parts like Molex 502570-0893 and TE 2041021-1. Engineers can rely on us for prototype substitutions, compatibility checks, packaging evaluations, and failure analysis.We provide standardized documentation, part-matching models, and application insights. This helps engineers control costs, ensure process reliability, and secure long-term supply in real-world deployments.
