Instrumentation Amplifiers in Modern Analog Signal Chains
Instrumentation amplifiers (in-amps) are essential components in analog front-end design. They play a vital role in applications across medical devices, power systems, and industrial automation. These amplifiers are specifically used to amplify low-level differential signals, suppress common-mode interference, minimize noise coupling, and provide input-output isolation.
This is particularly important when dealing with low-amplitude, high-impedance sources such as bioelectric signals or strain gauge bridges. The performance of the instrumentation amplifier can directly impact the accuracy and stability of the entire system.
As design requirements trend toward low power consumption, compact footprints, high linearity, and consistent performance, engineers must consider multiple trade-offs during component selection. This article focuses on the AD8227BRZ by Analog Devices. It analyzes the amplifier’s architecture and electrical characteristics in comparison with three representative in-amps—AD8226, INA333, and AD8420. The goal is to provide practical guidance for engineers facing real-world application demands.
AD8227BRZ: Positioning and Performance Highlights

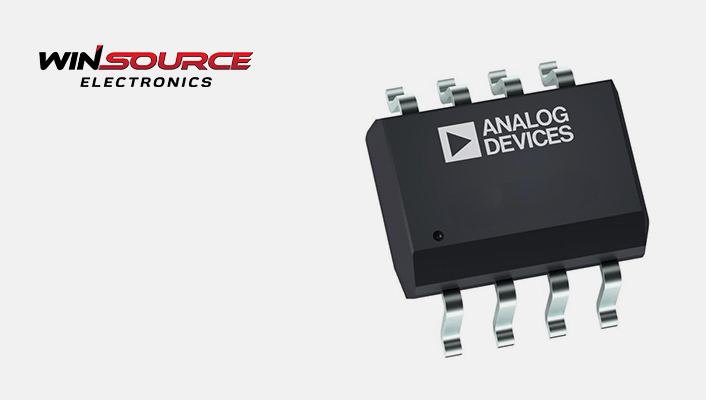

The AD8227BRZ is a fixed-gain (G = 5), low-power, rail-to-rail input instrumentation amplifier. It is designed specifically for power-sensitive applications. Its simplified architecture eliminates the need for external gain-setting resistors. This reduces design complexity and improves system consistency, making it well-suited for standardized modules and high-volume deployments.
The device supports a wide supply range—from 2.2V to 36V (single supply) or ±1.1V to ±18V (dual supply). It offers near-rail input capability, which ensures good dynamic range even in low-voltage systems. The typical common-mode rejection ratio (CMRR) is 86 dB at G = 5, helping to suppress environmental noise and ground shifts. With a typical quiescent current of just 800 µA, the AD8227BRZ balances performance and power efficiency. It is ideal for use in portable devices, sensor front-ends, and remote data acquisition modules.
Performance Comparison: AD8227BRZ vs. AD8226, INA333, and AD8420
To clarify where the AD8227BRZ fits in the landscape, it’s helpful to compare it with several widely used in-amps: AD8226 from Analog Devices, INA333 from Texas Instruments, and AD8420.
In terms of gain configuration, both AD8227BRZ and AD8420 use a fixed-gain architecture. This approach works well in applications with clearly defined signal levels and consistent hardware structures. AD8226 and INA333, in contrast, offer programmable gain, which is beneficial when dealing with a wide dynamic range.
For common-mode rejection, INA333 and AD8226 achieve CMRR levels up to 100 dB at G = 10. These devices are better suited to high-EMI environments or systems with fluctuating ground potentials. AD8227BRZ, with its 86 dB CMRR at G = 5, meets the needs of most industrial and medical applications.
Power consumption also varies significantly. The INA333 consumes as little as 50 µA, making it ideal for ultra-low-power designs. The AD8227BRZ consumes less than 1 mA and strikes a solid balance between performance and power. AD8226 and AD8420 draw more current and are best suited for applications that prioritize bandwidth and output drive over low power.
Choosing the Right Device: Practical Considerations
Selecting an instrumentation amplifier involves more than checking datasheets. Designers must match devices to system-level needs.
In fixed-gain, standardized architectures, the AD8227BRZ is a strong choice. It offers consistent performance, simplified design, and low power consumption. Applications include pressure sensor interfaces, battery-powered health monitors, and multi-channel analog front-ends.
When adjustable gain is necessary, AD8226 and INA333 offer more flexibility. AD8226 provides higher bandwidth and better output drive, making it ideal for precision industrial instruments. INA333 targets wearable or low-sampling-rate systems where ultra-low power is critical.
For cost-sensitive applications with looser structural requirements, the AD8420 delivers strong value. It is well-suited for basic sensor modules and educational or prototyping projects.
Key evaluation questions include:
- Do you need dynamic gain control?
- Is the system constrained by power or noise limits?
- Are package size and component uniformity critical?
- What is the allowable supply voltage range?
Application Example: Signal Conditioning for Strain Gauge Bridges
The AD8227BRZ is particularly effective in strain gauge measurement systems. These typically use Wheatstone bridge configurations to output millivolt-level differential signals. These signals are highly susceptible to thermal drift, EMI, and power fluctuations.
AD8227BRZ offers fixed 5x gain, rail-to-rail input, and 86 dB CMRR. Operating from a 5V single supply, it can directly interface with low-voltage ADCs. The REF pin can be tied to a reference voltage (e.g., 2.5V) to bias the output, ensuring compatibility with unipolar ADCs.
Its low quiescent current (800 µA typ.) makes it suitable for battery-powered systems or long-life remote sensor nodes. The combination of stability, efficiency, and precision makes it a strong fit for industrial monitoring and smart instrumentation.
Key Advantages of the AD8227BRZ
Fixed Gain (G = 5), Simplified Design
Eliminates the need for external resistors. Reduces layout complexity and improves repeatability.
Rail-to-Rail Input, Compatible with Low Voltage Supplies
Handles input signals near 0V and Vcc. Ideal for 3.3V and 5V systems.
High Common-Mode Rejection
86 dB CMRR helps block ground noise, power ripple, and coupled interference.
Low Power Operation
800 µA typical quiescent current supports energy-limited platforms.
Instrumentation amplifiers serve as the link between sensors and ADCs. Their selection must align with system goals, not just individual specs. AD8227BRZ stands out for its balanced parameters, compact architecture, and rail-to-rail performance. It is particularly suited for portable medical devices, industrial sensor modules, and IoT terminals that demand reliability, cost-efficiency, and consistent performance.
