Technical Overview of MT53D512M32D2DS-053 WT:D: Design Considerations for LPDDR4 16Gb Memory Integration

1. Product Summary

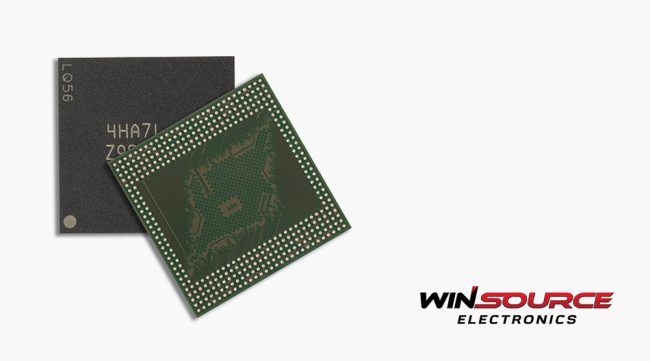

The MT53D512M32D2DS-053 WT:D is a 16Gb (2GB) low-power DDR4 (LPDDR4) DRAM chip developed by Micron. It features an x32 organization (2 × x16 channels), offering high bandwidth, low power consumption, and multi-channel support. This device is ideal for power-sensitive, high-performance applications such as portable devices, intelligent vision systems, AI modules, and embedded platforms.

With a dual-channel architecture (Channel A/B), each supporting 8 banks and a data rate of up to 4266 Mbps, the device is packaged in a compact 200-ball FBGA (0.5 mm pitch), well-suited for dense system board integration in space-constrained environments.

2. Key Specifications

3. Architecture and Signal Characteristics

● Dual-Channel High-Concurrency Architecture

The MT53D512M32D2DS supports simultaneous, non-blocking access across two independent channels. Interleaved read/write operations enhance effective bandwidth utilization, making it ideal for tasks such as video frame buffering, image preprocessing, and AI inference caching.

● Streamlined Pin Layout

The 200-ball FBGA package minimizes PCB area compared to conventional DDR3/DDR4 modules. Point-to-point signal routing enables efficient layout for PoP (Package on Package) or dual-die stack configurations.

● Fixed Burst Access Configuration

A fixed burst length of 16 simplifies memory controller design and enhances compatibility with SoCs, AI processors, and high-speed communication chipsets.

4. Typical Application Recommendations

5. Design Considerations (Engineer Reference Notes)

● PCB Layout Guidelines

• Use an 8-layer or higher PCB stackup with dedicated layers for CLK/CS/CK/CA signals.
• Match data line lengths; keep signal skew < 20ps for high-speed integrity.

● Power Integrity

• Ensure clean, low-noise 1.1V (VDD/VDDQ) rails with proper filtering.
• Place high-speed LDO regulators and decoupling arrays directly beneath the DRAM die for optimal performance.

● Compatibility Notes

• This device is a bare-die LPDDR4 part; some variants may include DDR PHY ID checking.
• The host controller must support LPDDR4 PHY—this part is not a drop-in replacement for standard DDR4 modules.

● Thermal Management

• Despite wide-temperature industrial-grade support, thermal simulations are recommended for high-throughput applications.
• Optimize BGA pad layout and copper planes for efficient heat dissipation.

6. Part Selection Guidance and Comparable Models

For applications requiring higher capacity (≥4GB) while maintaining LPDDR4 compatibility, consider transitioning to the MT53E series. If thermal range and small form factor are primary constraints, the D2DS-053 series remains an optimal choice.

The MT53D512M32D2DS-053 WT:D is a high-performance LPDDR4 bare-die memory from Micron that delivers a compelling combination of high bandwidth, low power consumption, compact packaging, and dual-channel parallelism. It is ideally suited for AIoT, smart vision terminals, and industrial edge computing applications—particularly in SoC platforms where real-time buffering, intermediate data caching, or neural model acceleration is required.

With defined interface standards, power requirements, and packaging formats, this device is a robust fit for LPDDR4 PHY-compliant system designs.
