  • Technical Overview of XC6SLX16-2FTG256C: A Spartan-6 FPGA Solution for Medium-Complexity Logic Designs

    1. Device Overview

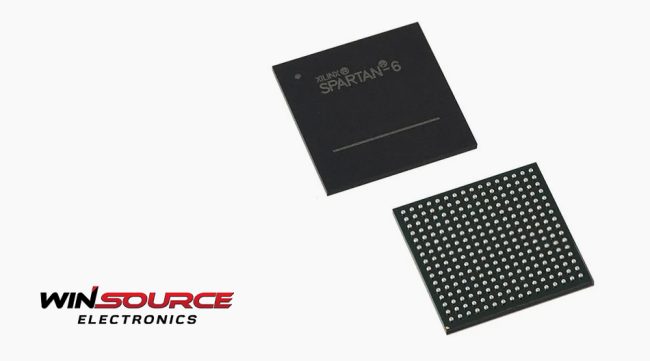

    The XC6SLX16-2FTG256C is a mid-range FPGA from Xilinx’s Spartan-6 family, manufactured using a 45nm low-power process. It offers a balanced mix of logic resources, embedded blocks, and power efficiency. Packaged in a 256-pin FTG BGA (17×17 mm), this device is well-suited for embedded platforms where PCB space and package density are considerations.

    Targeting applications in industrial control, communication bridging, consumer electronics, image processing, and medium-speed data processing, the XC6SLX16-2FTG256C supports high-speed LVDS interfaces, DDR2/DDR3 memory controllers, and DSP functionalities—making it a reliable choice for medium-complexity logic designs.

    2. Key Technical Specifications

    Parameter

    Specification

    Logic Cells (LUTs)

    14,579

    Flip-Flops

    18,224

    Block RAM

    576 KB (approximately 72 × 8KB blocks)

    DSP48A1 Slices

    32

    Clock Management

    4 DCMs, 2 PLLs

    I/O Count

    186 user-accessible I/Os

    Interface Support

    DDR2/DDR3, LVDS, SPI, UART

    Package

    FTG256 (BGA, 17×17 mm)

    Speed Grade

    -2 (Standard speed)

    Core Voltage

    1.2V (core), 3.3V (I/O)

    Operating Temperature

    Commercial (C): 0°C to +85°C

    RoHS Compliance

    Yes

    3. Architecture and Functional Advantages

    ● Distributed Logic Resources

    With over 14K LUTs, the XC6SLX16 is well-equipped to implement FSMs, multiplexers, protocol controllers, and other moderate-complexity logic modules. Compared to lower-end models like XC6SLX4 or XC6SLX9, it offers improved logic redundancy and scalability.

    ● Integrated DSP and Embedded RAM

    The device integrates 32 DSP48A1 slices, supporting intensive numeric processing tasks such as FIR filters, image convolutions, and MAC operations. Additionally, 576 KB of Block RAM is available for implementing FIFOs, buffers, and temporary data storage.

    ● Rich Clocking and Interface Resources

    With support for 2 PLLs and 4 DCMs, the chip facilitates multi-frequency clock domains. Its LVDS support enables high-speed differential signaling, ideal for applications such as camera interfaces, industrial acquisition, and board-to-board communication.

    4. Typical Application Scenarios

    Application Area

    Example Use Cases

    Industrial Control

    PLC logic implementation, PWM signal generation, sensor preprocessing

    Video and Image Processing

    Image scaling, edge detection, frame buffering

    Communication Bridging

    Translating SPI, UART, I2C to high-speed LVDS bus

    Security & Identification

    Video sampling and preprocessing (e.g., face detection, motion tracking)

    Education & Evaluation

    FPGA development boards for academic and prototyping use

    5. Design Considerations

    ● Clock Planning: Utilize Xilinx’s Clocking Wizard to optimally configure DCMs and PLLs, ensuring system stability across multiple domains.

    ● Pin Layout: The FTG256 BGA package has moderate density; a 6-layer or higher PCB is recommended to maintain signal integrity and power distribution.

    ● I/O Voltage Domains: When designing multi-voltage systems, ensure compatibility between logic levels. Grouped I/O bank power supply strategies are recommended.

    ● Thermal Management: Though power consumption is relatively low, systems with high I/O activity and concurrent DSP use should evaluate thermal resistance and include proper heat dissipation measures.

    6. Comparison Within the Spartan-6 LX Series

    Model

    LUTs

    Block RAM

    DSP Slices

    Package Options

    Target Complexity

    XC6SLX9

    5,980

    432 KB

    16

    TQG144, etc.

    Entry-level designs

    XC6SLX16

    14,579

    576 KB

    32

    FTG256

    Medium-complexity systems

    XC6SLX25

    24,051

    936 KB

    38

    FG484, etc.

    Signal/image processing

    XC6SLX45

    43,661

    2,088 KB

    58

    FG484/FG676

    High-density control



    The XC6SLX16-2FTG256C is an optimal FPGA choice for designs that demand moderate logic resources, efficient packaging, and rich I/O and interface capabilities. It is particularly well-suited for embedded applications in industrial automation, interface bridging, and image processing that do not require ultra-high logic density but benefit from stable, low-power, and programmable control.

    For more information on specs and stock, please visit the WIN SOURCE website.
