* Question
Briefly describe the CMOL circuit?
* Answer
CMOL (Complementary Metal-Oxide Semiconductor + Molecular) circuits are a hybrid nanotechnology concept that combines traditional CMOS technology with molecular-scale devices to overcome the limitations of Moore’s Law.
Key Characteristics of CMOL Circuits:
Hybrid Architecture:

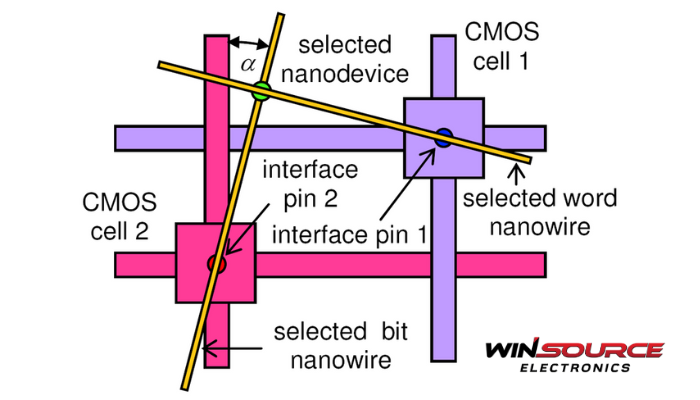

CMOL integrates CMOS transistors (for signal restoration and control) with a layer of nanoscale crossbar arrays made of molecular or nanowire devices.
The nanoscale layer is placed on top of the CMOS substrate and connected through vertical vias.
Crossbar Structure:
The nanoscale part typically consists of a two-dimensional crossbar of nanowires with programmable nanodevices (such as molecular switches or memristors) at each junction.
These crosspoints can implement logic functions, memory cells, or reconfigurable interconnects.
High Density and Performance:
Enables extremely high integration density, potentially orders of magnitude beyond conventional CMOS.
Promises low power consumption and high-speed operation at molecular scale.
Defect Tolerance:
CMOL circuits are designed to be defect-tolerant, leveraging reconfiguration algorithms to bypass faulty nanoscale elements—critical due to high defect rates in nanodevice fabrication.
Applications:
Ultra-dense non-volatile memories.
Neuromorphic computing architectures.
High-performance programmable logic arrays.
In summary, CMOL circuits aim to merge the scalability of molecular electronics with the reliability and maturity of CMOS, enabling future computing systems beyond the limits of traditional lithography.
