* Question
What are the oscilloscope types?
* Answer

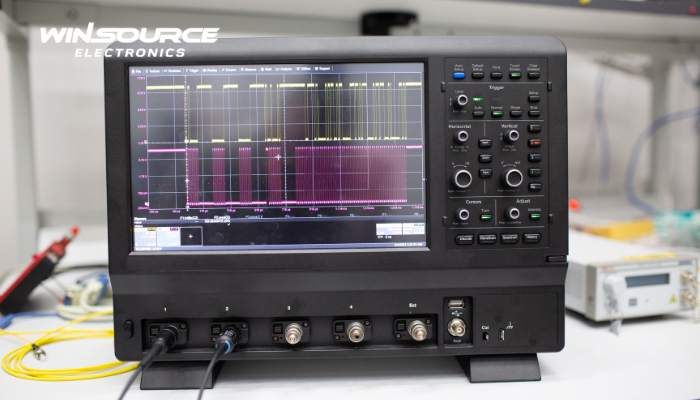

Oscilloscopes are essential tools for observing and analyzing electrical signals, particularly in time and frequency domains. Various types of oscilloscopes are designed to suit different applications, measurement needs, and signal characteristics.
Below is a categorized summary of the main types of oscilloscopes:
1. Analog Oscilloscope
Overview:
Uses cathode-ray tubes (CRT) to display continuous waveforms in real-time.
Characteristics:
Real-time voltage vs. time display.
High signal fidelity for analog signals.
Limited to visual inspection; lacks digital storage.
Use Cases:
Traditional analog signal monitoring.
Educational and basic electronics labs.
2. Digital Oscilloscope
Digitizes incoming analog signals using an ADC (Analog-to-Digital Converter) and stores them for processing and display.
Subtypes of Digital Oscilloscopes:
a. Digital Storage Oscilloscope (DSO)
Stores waveforms in memory for later analysis.
Offers triggering, zooming, and digital processing features.
Common in general-purpose electronics and troubleshooting.
b. Digital Phosphor Oscilloscope (DPO)
Captures multiple waveform events rapidly.
Offers color-grading and intensity mapping to emulate analog phosphor behavior.
Useful for visualizing signal variations over time.
c. Mixed Signal Oscilloscope (MSO)
Combines analog and digital (logic) channels.
Allows correlation of analog waveforms with digital data buses.
Ideal for debugging embedded systems with mixed-signal environments.
d. Mixed Domain Oscilloscope (MDO)
Integrates oscilloscope functions with spectrum analysis.
Captures both time-domain and frequency-domain views.
Useful in RF and wireless signal testing.
3. Portable and Handheld Oscilloscopes
Overview:
Compact, battery-powered units designed for field use.
Characteristics:
Reduced bandwidth and storage depth.
Often combined with multimeter functions.
Rugged and suited for on-site diagnostics.
Use Cases:
Industrial maintenance.
Automotive and power systems testing.
4. PC-Based Oscilloscope
Overview:
Uses a computer’s processing power and display via USB or PCI interfaces.
Characteristics:
Lower cost; relies on software for control and visualization.
High flexibility and storage capacity.
Suitable for budget-conscious or remote setups.
5. Sampling Oscilloscope
Overview:
Designed for analyzing high-speed repetitive signals using equivalent-time sampling.
Characteristics:
Extremely high bandwidth (tens to hundreds of GHz).
Lower real-time capture rate.
Ideal for optical communication and ultra-fast digital systems.
Summary Table
Oscilloscope Type | Key Feature | Primary Application |
Analog Oscilloscope | Real-time CRT display | Basic signal visualization |
Digital Storage (DSO) | Signal capture and memory storage | General electronics, embedded debugging |
Digital Phosphor (DPO) | Enhanced visualization with intensity grading | Transient and jitter analysis |
Mixed Signal (MSO) | Analog + digital channels | Embedded system development |
Mixed Domain (MDO) | Time and frequency analysis | RF and wireless system testing |
Portable/Handheld | Compact and rugged | Field testing and maintenance |
PC-Based Oscilloscope | Software-driven, cost-effective | Education, small labs, remote diagnostics |
Sampling Oscilloscope | High-bandwidth, repetitive signal analysis | Optical and high-speed digital communication |
Conclusion:
Choosing the right type of oscilloscope depends on your application needs, such as signal frequency, portability, digital protocol analysis, or RF domain inspection. Understanding these types ensures optimal performance and efficiency in diagnostics and design validation.
