Technical parameters and characteristics of the Resistors

* Question

Technical parameters and characteristics of the Resistors

* Answer

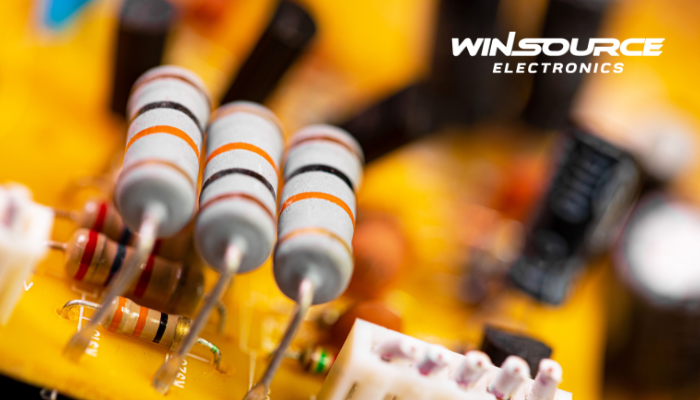

Resistors are fundamental passive components in electrical and electronic circuits, primarily used to limit current, divide voltages, and dissipate power. To ensure appropriate selection and integration, it’s critical to understand their key technical parameters and performance characteristics.

1. Resistance Value (Ω)

Definition: The nominal opposition a resistor offers to current flow, measured in ohms (Ω).

Specification: Typically indicated as a fixed value (e.g., 1 kΩ), though variable resistors (potentiometers) allow adjustment.

Tolerance: Expressed as a percentage (e.g., ±1%, ±5%), indicating the possible variation from the nominal value due to manufacturing.

2. Power Rating (W)

Definition: The maximum continuous power the resistor can dissipate without damage.

Common Values: 0.125 W, 0.25 W, 0.5 W, 1 W, 2 W, etc.

Selection Tip: Always choose a resistor with a power rating at least twice the expected dissipation for reliability.

3. Temperature Coefficient (ppm/°C)

Definition: Indicates how the resistance value changes with temperature.

Typical Range: ±50 to ±500 ppm/°C.

Implication: Lower coefficients are preferred in precision applications to maintain stability over temperature fluctuations.

4. Maximum Working Voltage (V)

Definition: The highest voltage that can be applied across the resistor without risking breakdown.

Note: Exceeding this limit can cause arcing or insulation failure.

Types of Ratings:

Continuous Operating Voltage

Overload or Surge Voltage

5. Tolerance (%)

Definition: The permissible deviation from the nominal resistance value.

Standard Tolerances: ±0.1%, ±0.5%, ±1%, ±5%, ±10%

Application Guidance:

±1% or lower: Precision circuits (e.g., analog filters, reference networks)

±5% or more: General-purpose applications

6. Stability and Drift

Definition: Long-term change in resistance due to aging, heat stress, or environmental factors.

Specified As: ΔR/R over time (e.g., ±0.5% over 1000 hours)

Important For: High-reliability systems (e.g., aerospace, medical)

7. Noise

Definition: Unwanted electrical signal generated by the resistor itself due to composition and structure.

Low-Noise Types: Metal film resistors

High-Noise Types: Carbon composition resistors

Significance: Important in audio, instrumentation, and signal amplification circuits.

8. Frequency Response / Parasitics

Definition: At high frequencies, resistors exhibit parasitic inductance and capacitance.

Effect: May impact circuit performance in RF or high-speed digital applications.

Solution: Use non-inductive resistors or surface-mount types for better high-frequency characteristics.

9. Packaging and Mounting Type

Through-Hole: Axial and radial leads; suitable for prototyping and high-power applications.

Surface-Mount Device (SMD): Compact, used in automated PCB assembly.

Common Sizes: 0201, 0402, 0603, 0805, 1206 (for SMD); 1/4W, 1/2W axial (for through-hole)

10. Environmental Ratings

Operating Temperature Range: Typical: –55°C to +155°C or wider for industrial/military grade.

Moisture Sensitivity: Affects long-term reliability; resistors with protective coatings improve durability.

Flammability Standards: UL 94V-0 rated materials often used in critical environments.

Key Types of Resistors

Insight

Selecting a resistor is not just about the resistance value. Parameters like power rating, temperature stability, frequency performance, and mechanical form factor must align with the electrical, thermal, and mechanical constraints of your application. Precision applications demand tight tolerances and low noise, while power systems prioritize wattage and reliability.

Understanding these characteristics ensures optimal performance, longevity, and safety in any electronic design.
