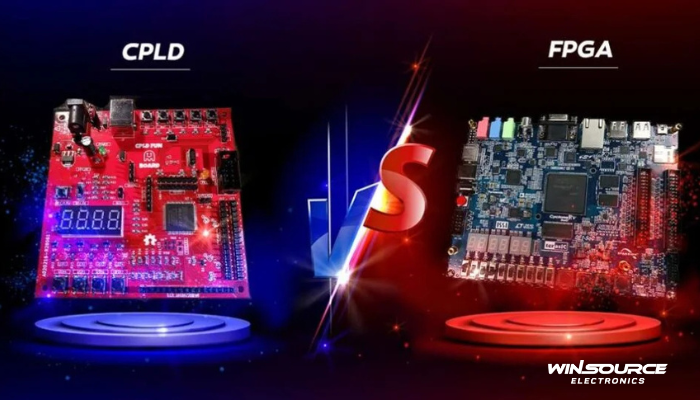

What are the differences between FPGA and CPLD?

* Question

What are the differences between FPGA and CPLD?

* Answer

FPGAs (Field-Programmable Gate Arrays) and CPLDs (Complex Programmable Logic Devices) are both types of programmable logic devices used to implement digital circuits. While they serve similar purposes, they have several key differences in terms of architecture, capabilities, and use cases.

1. Architecture

FPGA: FPGAs are made up of a large number of configurable logic blocks (CLBs), Look-Up Tables (LUTs), and programmable interconnects. FPGAs are more flexible and can be configured to implement complex logic circuits, including large-scale parallel processing.

CPLD: CPLDs consist of a set of macro-cells and programmable interconnects. They generally have fewer logic blocks compared to FPGAs but still offer programmable logic resources. CPLDs are more suited for simpler, combinational logic tasks.

2. Size and Complexity

FPGA: FPGAs are typically much larger in terms of available logic resources, capable of handling more complex designs. They can implement a high number of gates and logic functions, making them suitable for applications that require large-scale parallelism or highly complex logic.

CPLD: CPLDs are smaller, with fewer logic resources. They are typically used for less complex tasks, such as glue logic, interface bridging, or control circuits. They have a limited number of gates and logic blocks compared to FPGAs.

3. Speed

FPGA: FPGAs usually have higher speed for operations involving large, parallel processing because they can perform more operations simultaneously. However, the interconnects in FPGAs may lead to slightly slower performance due to their complexity.

CPLD: CPLDs tend to have faster propagation delays for smaller designs due to their simpler architecture. The routing delays are generally lower than in FPGAs, which can make CPLDs better suited for high-speed, simpler logic circuits.

4. Power Consumption

FPGA: Due to their larger size, complex interconnects, and higher number of logic resources, FPGAs tend to consume more power, especially in high-performance applications.

CPLD: CPLDs generally consume less power due to their simpler and smaller design. This makes them a better choice for low-power applications that don’t require the scale of an FPGA.

5. Configuration and Reprogrammability

FPGA: FPGAs are fully reconfigurable, meaning they can be reprogrammed to perform different functions even after deployment. They often require external configuration devices, and their configuration can be done at startup or dynamically while the system is running.

CPLD: CPLDs are also reprogrammable, but their programming is often done once, and they are typically configured on power-up or during initialization. While reconfigurable, they don’t have the dynamic reconfiguration capabilities of FPGAs.

6. Use Cases

FPGA: FPGAs are commonly used in applications requiring high performance, complex designs, and parallel processing, such as:

Signal processing

Video/image processing

High-speed networking

Cryptographic applications

Data processing and acceleration

CPLD: CPLDs are typically used for simpler tasks like interface control, glue logic, and protocol conversion, such as:

Simple logic functions (e.g., AND, OR, XOR gates)

Clock division and frequency synthesis

Peripheral control

Bus control

7. Development Complexity

FPGA: Due to their larger and more flexible architecture, designing with FPGAs can be more complex. The design process often involves using hardware description languages (HDL) like VHDL or Verilog, and the simulation and testing processes are more involved.

CPLD: The design for CPLDs tends to be simpler, with a more straightforward implementation of logic circuits. CPLD designs are often less complex and easier to implement for smaller-scale applications.

8. Cost

FPGA: FPGAs tend to be more expensive due to their larger size, higher logic capacity, and more advanced features.

CPLD: CPLDs are generally less expensive, making them a more cost-effective solution for simpler applications.

Summary of Key Differences

In conclusion, FPGAs are suitable for high-performance, complex tasks involving large-scale parallel processing, while CPLDs are better for simpler, smaller logic designs where power consumption and cost are more critical.
