* Question
What are the functions and characteristics of transient voltage suppression diodes?
* Answer
Transient Voltage Suppression (TVS) diodes are essential components in protecting electronic circuits from voltage spikes or transient surges, which can occur due to various phenomena such as lightning strikes, electrostatic discharge (ESD), switching surges, and other electrical disturbances. TVS diodes are designed to clamp the voltage to a safe level, thereby protecting sensitive components in the circuit.
Functions of TVS Diodes:
Voltage Clamping:
The primary function of a TVS diode is to clamp transient voltage spikes to a safe level. When the voltage exceeds a specified threshold (the breakdown voltage), the TVS diode becomes conductive and diverts the excess current away from the protected circuit, thereby reducing the voltage to a safe level.
Energy Absorption:
TVS diodes absorb and dissipate the energy from transient surges, preventing the excess energy from reaching sensitive components in the circuit. This helps in safeguarding components like microprocessors, memory devices, and communication ports.
Fast Response Time:
TVS diodes are designed to react very quickly to voltage spikes (in nanoseconds), providing instantaneous protection. This is crucial for protecting high-speed or high-frequency circuits that could be damaged by even brief voltage surges.
Bidirectional Protection:
Bidirectional TVS diodes are often used for AC circuits or circuits with signals that can swing both positive and negative. These diodes provide protection in both directions, clamping voltage spikes that could occur in either polarity.
Limiting the Peak Voltage:
The TVS diode limits the peak voltage to a safe level, preventing the components from being exposed to damaging levels of overvoltage.
Preventing Circuit Damage:
TVS diodes protect against overvoltage events that can cause permanent damage to integrated circuits, microcontrollers, communication lines, and other sensitive electronic components, ensuring the reliability and longevity of the system.
Characteristics of TVS Diodes:
Clamping Voltage (Vc):
Clamping voltage is the maximum voltage the diode will allow before it starts to conduct and divert the excess energy. This is typically higher than the breakdown voltage but still within a safe range for the circuit.
A lower clamping voltage means better protection, but too low a clamping voltage may result in the diode conducting during normal operation, which could interfere with the circuit’s function.
Breakdown Voltage (Vbr):
The breakdown voltage is the voltage at which the TVS diode begins to conduct and protect the circuit. This is typically slightly higher than the normal operating voltage of the circuit but should still be within the tolerance of the protected components.
Peak Pulse Power (PPP):
Peak pulse power indicates the maximum amount of energy the TVS diode can safely absorb during a transient event. This is a critical specification when selecting a TVS diode, as it must be high enough to handle the expected transient energy without breaking down or damaging itself.
Clamping Energy (Ecl):
The clamping energy is the energy absorbed by the diode during a transient event before it clamps the voltage to a safe level. This should be sufficient to protect the circuit without causing the diode to fail.
Response Time:
TVS diodes have an extremely fast response time (typically in the nanosecond range). This is necessary to protect sensitive circuits from high-speed transients that can occur in modern electronic systems.
Reverse Leakage Current:
The reverse leakage current is the small current that flows through the diode when it is in its non-conductive state (i.e., the voltage is below the breakdown voltage). Low leakage current is important to ensure that the TVS diode does not affect the normal operation of the circuit when there are no transients.
Capacitance:
TVS diodes have a certain amount of capacitance that can affect the performance of high-speed circuits, especially in communication lines. The capacitance should be low enough to avoid degrading signal integrity in data transmission circuits.
Stand-off Voltage (Vwm):
The stand-off voltage is the maximum continuous voltage the TVS diode can withstand without any degradation in performance. It is typically rated at the normal operating voltage of the circuit.
Energy Absorption Capability:
This is the total amount of energy (measured in joules) the TVS diode can absorb without failing. This is important in circuits where high-energy transients might occur, such as those exposed to lightning strikes or industrial machinery.
Package Type:
TVS diodes come in different package types, such as surface-mount (SMD) or through-hole packages. The choice of package type depends on the application and the physical space available on the circuit board.
Bidirectional vs. Unidirectional:
Bidirectional TVS diodes are used to protect circuits with AC signals or circuits where the voltage can swing both positive and negative, such as communication lines.
Unidirectional TVS diodes are used for circuits with a unidirectional voltage (e.g., DC circuits or positive-only signals).
Types of TVS Diodes:
Unidirectional TVS Diodes:
These are used when the voltage in the protected circuit can only go in one direction (typically used for DC or unidirectional AC circuits).
Bidirectional TVS Diodes:
These diodes are used when the voltage can swing both positive and negative, such as in AC systems or signal lines that handle both polarities (e.g., data communication lines).
Surface-Mount TVS Diodes (SMD):
These are compact diodes designed for use in modern electronics where space is at a premium. They are widely used in consumer electronics, automotive applications, and communication systems.

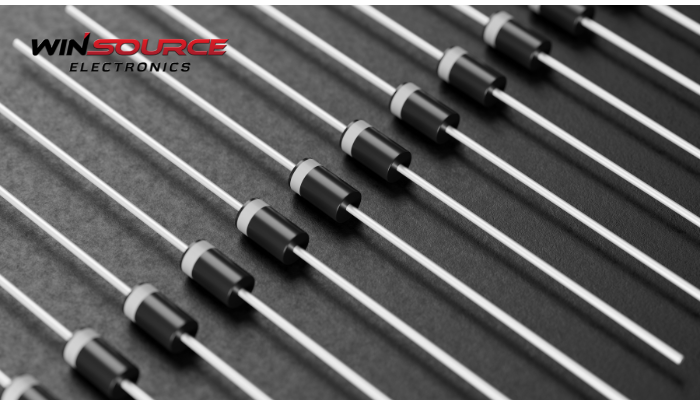

Through-Hole TVS Diodes:
These are traditional diodes with leads for mounting in through-holes on a circuit board. They are generally used in industrial or power electronics applications.
Applications of TVS Diodes:
Data Lines and Communication Ports: TVS diodes are commonly used in protecting data lines, such as USB, Ethernet, and HDMI, from transient voltage spikes and ESD.
Power Supply Lines: Protecting power supply inputs from transient voltage surges.
Automotive Systems: Used in automotive electronic systems to protect against voltage spikes caused by load dump, lightning, or switching transients.
Consumer Electronics: TVS diodes protect sensitive components in smartphones, tablets, and other devices from ESD and voltage spikes.
Industrial Electronics: In industrial control systems, TVS diodes are used to protect against transients generated by machinery, power equipment, or lightning.
Conclusion:
Transient Voltage Suppression (TVS) diodes are crucial for protecting electronic components from voltage surges and transient events. They function by clamping transient voltage spikes to a safe level, absorbing excess energy, and providing fast response times to prevent damage to sensitive circuits. With their low clamping voltage, fast reaction time, and high energy absorption capabilities, TVS diodes are essential in protecting electronic devices in a wide range of applications, from consumer electronics to industrial systems.
