* Question
What is a thyristor and its classification?
* Answer

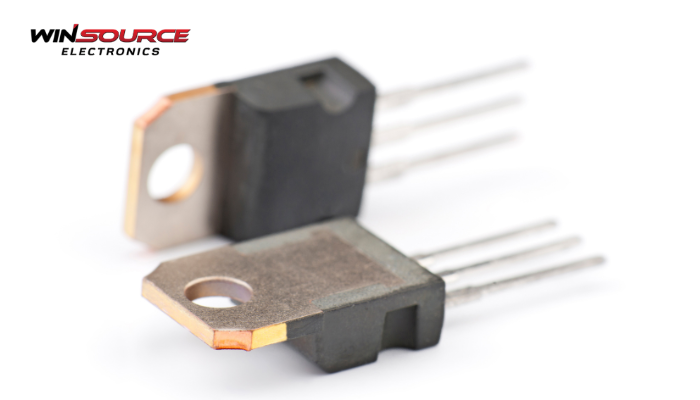

A thyristor is a type of semiconductor device that acts as a switch, controlling the flow of electrical power in a circuit. It has four layers of alternating N-type and P-type material (PNPN), and it can be used to control large amounts of power with a small control current. Once triggered, a thyristor remains “on” until the current flowing through it is reduced below a certain threshold (known as the “holding current”).
Thyristors are commonly used in applications such as power regulation, motor control, and light dimmers due to their ability to handle high voltages and currents.
Classification of Thyristors:
Silicon Controlled Rectifier (SCR):
Description: The most common type of thyristor, primarily used for controlling power. It has three terminals: anode, cathode, and gate.
Operation: The SCR is turned “on” by applying a small current to the gate, and it remains “on” even after the gate current is removed. It can only be turned “off” when the current through it drops below a certain level.
Applications: Used in rectifiers, motor control, and power regulation.
Triac:
Description: A bidirectional thyristor that can conduct current in both directions. It is a type of SCR that can be triggered by a gate current applied in either direction.
Operation: Triacs can be triggered by a gate current and can turn “on” and “off” with alternating current (AC), making them useful for AC applications.
Applications: Used in light dimmers, motor speed control, and AC power control.
Diac:
Description: A bidirectional device similar to a Triac but without a gate. It has two terminals and is triggered when the voltage across it exceeds a certain threshold.
Operation: The DIAC switches “on” when the voltage exceeds a certain value, but it does not have a gate terminal for external triggering like the SCR or Triac.
Applications: Used in triggering Triacs, motor control, and dimming circuits.
Gate Turn-Off Thyristor (GTO):
Description: A type of thyristor that can be turned “off” by a gate signal, unlike the SCR, which can only be turned off by reducing the current.
Operation: The GTO allows for both turning “on” and “off” via a gate signal, providing more control over the device.
Applications: Used in high-power motor control, inverters, and power supplies.
Reverse Conducting Thyristor (RCT):
Description: A thyristor that combines a diode and a thyristor in a single package, enabling it to conduct in both directions.
Operation: It operates similarly to an SCR but also allows reverse current flow, making it useful in AC applications where current alternates directions.
Applications: Used in AC circuits where bidirectional control is needed.
Silicon Controlled Switch (SCS):
Description: A thyristor that has four layers like an SCR, but it also includes an additional gate for turning the device “off.”
Operation: The SCS allows both “on” and “off” switching through gate control, providing additional flexibility compared to an SCR.
Applications: Used in high-power switching applications, including AC power control and motor drives.
Programmable Unidirectional Silicon Controlled Switch (PUSC):
Description: A thyristor that is used for controlled switching and can be programmed for specific characteristics.
Operation: Similar to the SCR, but with more advanced control and programming features.
Applications: Used in more advanced switching and control systems in industries requiring high precision.
Summary of Key Thyristor Types:
SCR (Silicon Controlled Rectifier): Most common, unidirectional, and widely used in power control.
Triac: Bidirectional, used in AC power control.
Diac: Bidirectional, used to trigger Triacs and in AC circuits.
GTO (Gate Turn-Off Thyristor): Allows both turning “on” and “off” via gate control.
RCT (Reverse Conducting Thyristor): Allows bidirectional current flow and combines diode and thyristor functionality.
SCS (Silicon Controlled Switch): Allows both “on” and “off” control with additional gate.
PUSC: Programmable and used in precise switching applications.
Thyristors are essential components in controlling large amounts of electrical power and are widely used in industrial applications, power electronics, and renewable energy systems.
