* Question
What is the allowable deviation of an inductor?
* Answer

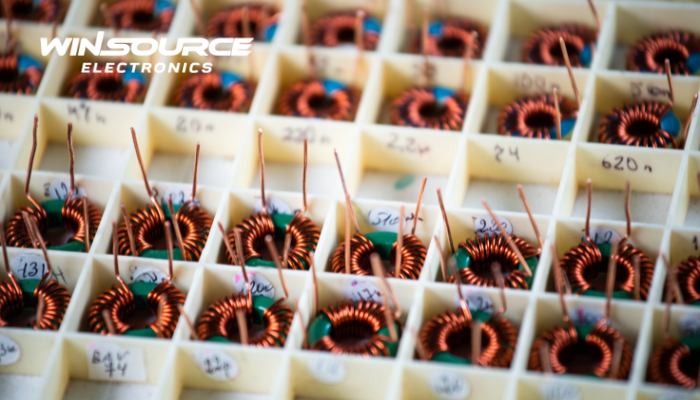

The allowable deviation of an inductor, also known as its tolerance, defines how much the actual inductance value can vary from its nominal (labeled) value due to manufacturing variations. This is a critical parameter in circuit design, especially in RF, filter, and power applications where precise inductance is required for consistent performance.
Typical Inductor Tolerance Values
Inductor tolerances are usually expressed as a percentage and are specified by the manufacturer. Common values include:
Tolerance (%) | Description | Application Notes |
±20% | Wide tolerance | General-purpose, low-cost applications |
±10% | Moderate tolerance | Suitable for most power and signal circuits |
±5% | Tight tolerance | Used in tuned circuits, oscillators, filters |
±2% / ±1% | Precision-grade tolerance | High-frequency RF, medical, aerospace systems |
Factors Affecting Inductor Tolerance
Core Material: Ferrite and iron powder cores have different magnetic properties, affecting accuracy.
Manufacturing Variations: Winding count, spacing, and core consistency impact final inductance.
Temperature Coefficient: Inductance can drift with temperature changes; tighter tolerance inductors often have better thermal stability.
Frequency Dependence: Some inductors show variation in inductance over operating frequency, which may affect effective tolerance in AC circuits.
Why Inductor Tolerance Matters
Power Electronics: A ±20% variation may impact current ripple or energy storage in converters.
RF Circuits: Even ±5% deviation may shift resonance frequency or impedance matching.
Precision Filters: Inductors with tight tolerances ensure consistent cutoff and response.
Insight
The allowable deviation of an inductor must be chosen based on the sensitivity of the application to inductance variance. In cost-sensitive designs, ±20% may be acceptable, but in frequency-selective or timing-critical systems, ±5% or better is recommended.
For optimal circuit performance, always refer to the manufacturer’s datasheet for actual tolerance and temperature stability, and consider derating or tuning techniques in critical applications.
